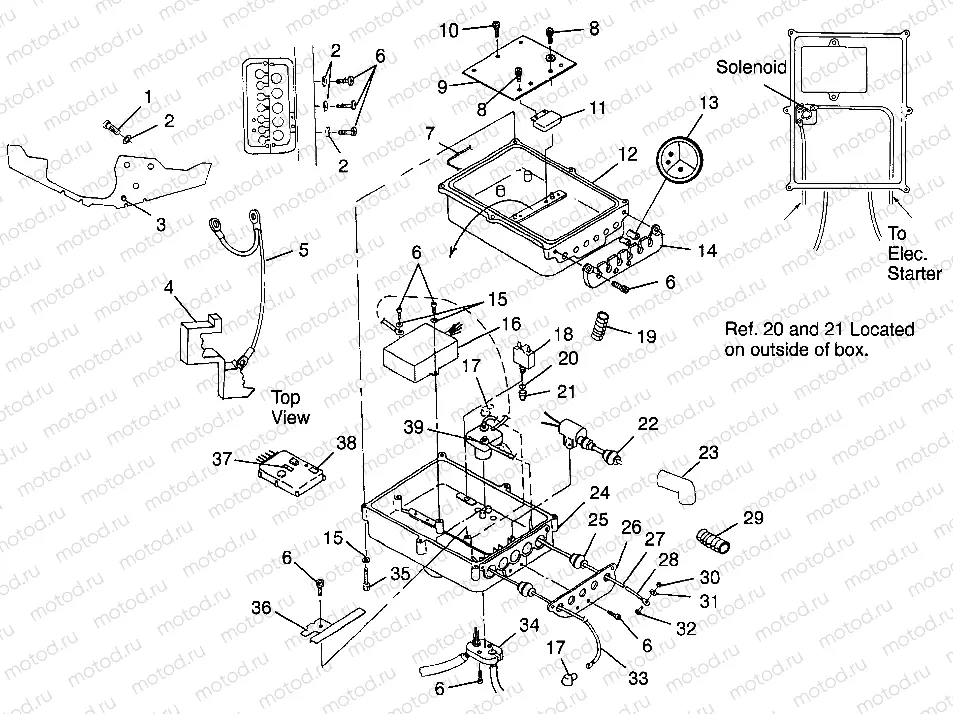

ELECTRICAL BOX SLTX B974590 and INTL. SLTX I974590 (4941214121B009) | ELECTRICAL BOX SLTX B974590 and INTL. SLTX I974590 (4941214121B009)

ELECTRICAL BOX SLTX B974590 and INTL. SLTX I974590 (4941214121B009) | ELECTRICAL BOX SLTX B974590 and INTL. SLTX I974590 (4941214121B009)
Например: 7515127
1
7515127
BOLT(10)
2
7555891
WASHER,S.S.(10)
3
5411158
Damper
4
7080471
CLIP IGNITION CABLE
5
2460581
HARNESS,GND-CONTROL BOX
6
7515118
BOLT S.S.
7
5410912
O-RING,(ELEC.BOX)
8
7512072
SCREW,S.S.(10)
9
4040080
BOARD,TERMINAL,MFD,DIODE
10
7512042
BOLT S.S.
11
4010302
REGULATOR-RECT/CUTOFF-LR31-2
12
5131256
BOX,BOTTOM,ELEC.
13
5410817
O-RING,(10)
13
5410852
GROMMET,SECTION,2-HOLE
13
5410850
GROMMET,SECTION,NO HOLE
14
5630497
PLATE,6-HOLE,CAST
15
7555836
Rondelle
16
LR--
CALIPER, BRAKE, RH
17
5410346
INSUL.CABLE SOL.
18
2434011
CKT.BREAKER 15A.(WATER.)
19
4010051-30
CONDUIT CONVOLUTED(30 CM)
20
5410725
O-Ring
21
7080461
BOOT THREADED
22
5410677
GROMMET, COIL
23
4020159
Spark plug cap
24
5131174
TOP, ELEC.BOX
25
5410678
GROMMET, 16 GA.(10)
26
5630416
PLATE, 5-HOLE
27
4010081
"""CABLE RED SOL./START."""
28
4010051-30
CONDUIT CONVOLUTED(30 CM)
28
7080138
CABLE TIE
29
5521287-132
"""CONDUIT FLEX 1.250ID"""
30
7546705
NUT 6 MM. S.S.
31
7552613
Rondelle (Lock)
32
7516809
BOLT(10)
33
4010082
SUBSTITUTED BY 9999999
34
5630415
PLATE, 2-HOLE
35
7515119
BOLT(10)
36
5241182
BRKT,COIL RETAINER
37
7073713
DECAL,WARN,HI.VOLT. (See Page 21)
38
7073734
DECAL,ELECT.BOX RESET (See Page 21)
