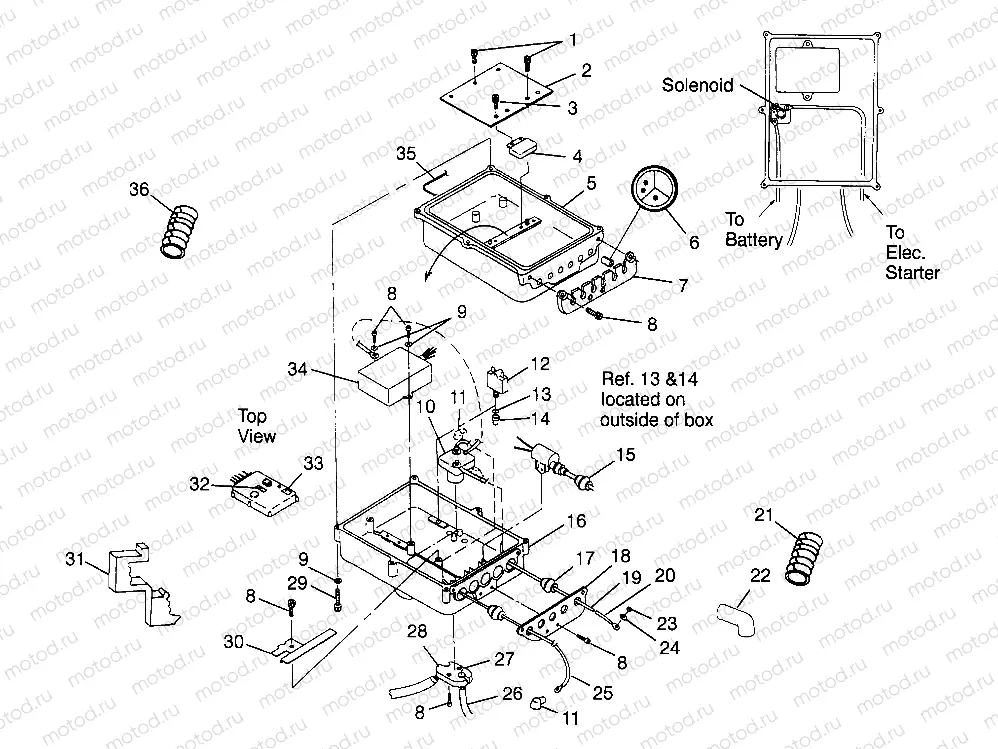

Главная Каталог товаров Polaris EPC 1997 Polaris PWC Polaris 1997 SL 780 (B974088) Polaris 1997 PWC ELECTRICAL BOX SL 780 B974088 and Intl. SL 780 I974088 (4940924092B011) | ELECTRICAL BOX SL 780 B974088 and Intl. SL 780 I974088 (4940924092B011)

ELECTRICAL BOX SL 780 B974088 and Intl. SL 780 I974088 (4940924092B011) | ELECTRICAL BOX SL 780 B974088 and Intl. SL 780 I974088 (4940924092B011)

ELECTRICAL BOX SL 780 B974088 and Intl. SL 780 I974088 (4940924092B011) | ELECTRICAL BOX SL 780 B974088 and Intl. SL 780 I974088 (4940924092B011)

Например: 7512042

1

7512042

BOLT S.S.

2

2434014

TERM.BOARD ASM,MFD

3

7512072

SCREW,S.S.(10)

4

4010302

REGULATOR-RECT/CUTOFF-LR31-2

5

5131663

BOTTOM ELEC.BOX

6

5410850

GROMMET,SECTION,NO HOLE

6

5410817

O-RING,(10)

6

5410852

GROMMET,SECTION,2-HOLE

7

5630497

PLATE,6-HOLE,CAST

8

7515118

BOLT S.S.

9

7555836

Rondelle

10

LR--

CALIPER, BRAKE, RH

11

5410346

INSUL.CABLE SOL.

12

2434011

CKT.BREAKER 15A.(WATER.)

13

5410725

O-Ring

14

7080461

BOOT THREADED

15

5410677

GROMMET, COIL

16

5131018

TOP,ELECT.BOX

17

5410678

GROMMET, 16 GA.(10)

18

5630416

PLATE, 5-HOLE

19

4010081

"""CABLE RED SOL./START."""

20

4010051-30

CONDUIT CONVOLUTED(30 CM)

20

7080138

CABLE TIE

21

5521287-63

CONDUIT,FLEX,1.250ID Substituted by 5521287-132

23

7546705

NUT 6 MM. S.S.

24

7552613

Rondelle (Lock)

25

4010082

SUBSTITUTED BY 9999999

26

2460518

HARNESS,WIRE,MFD(SL)

27

5630415

PLATE, 2-HOLE

28

5410973

GROMMET WIRE HARNESS

29

7515119

BOLT(10)

30

5240414

BRKT,RETAINER,COIL

31

7080471

CLIP IGNITION CABLE

32

7073713

DECAL,WARN,HI.VOLT. (See Page 21)

33

7073734

DECAL,ELECT.BOX RESET (See Page 21)

35

5410912

O-RING,(ELEC.BOX)

36

4010051-30

CONDUIT CONVOLUTED(30 CM)
