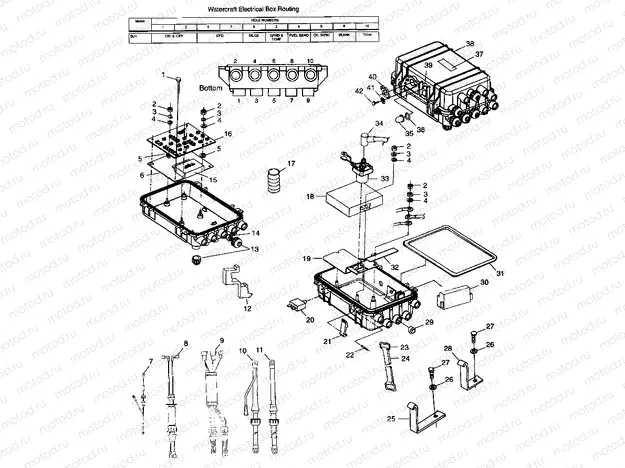

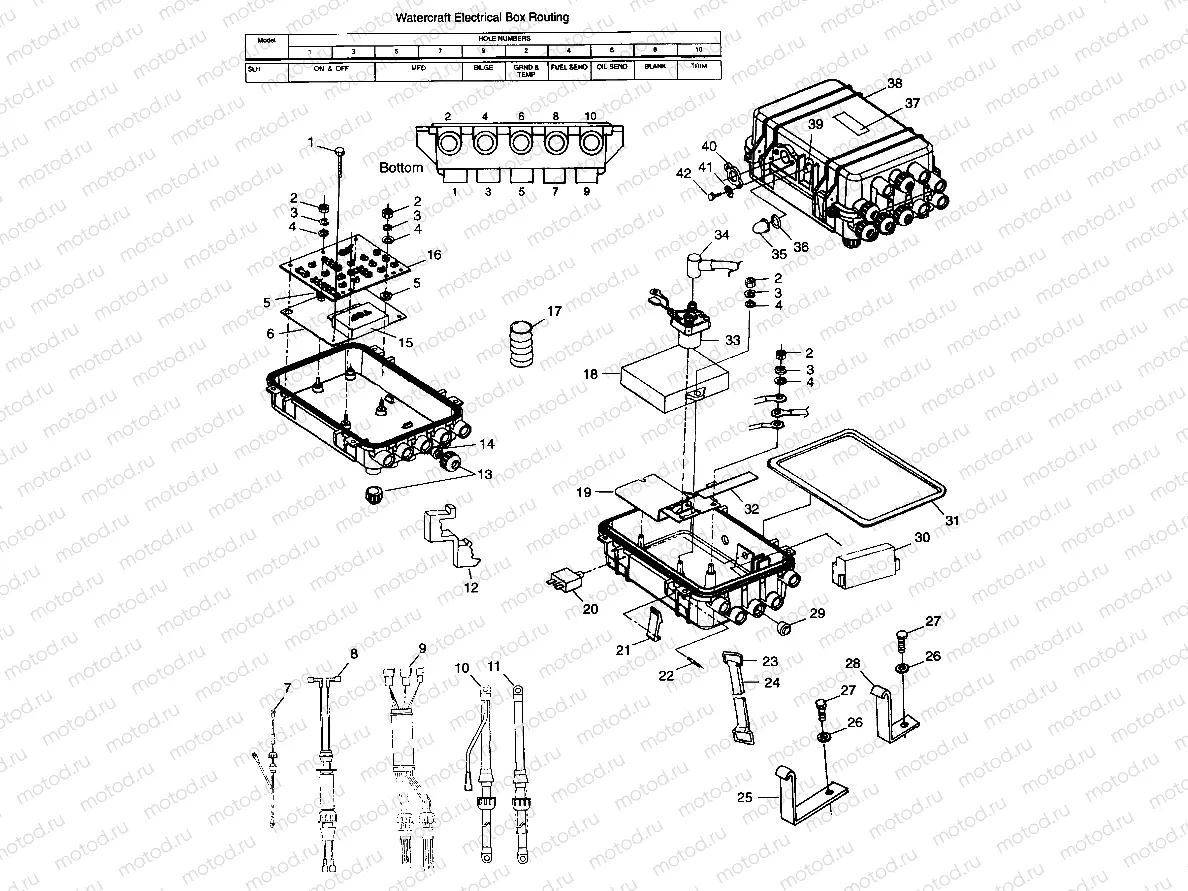

Главная Каталог товаров Polaris EPC 1998 Polaris PWC Polaris 1998 INTL SLH (I984673) Polaris 1998 PWC ELECTRICAL BOX - I984673 (4945164516b011) | ELECTRICAL BOX - I984673 (4945164516b011)

ELECTRICAL BOX - I984673 (4945164516b011) | ELECTRICAL BOX - I984673 (4945164516b011)

ELECTRICAL BOX - I984673 (4945164516b011) | ELECTRICAL BOX - I984673 (4945164516b011)

Например: 7512042

1

7512042

BOLT S.S.

2

7547036

NUT, SS.(10)

3

7552615

Rondelle (Lock)

4

7555837

WASHER, FLAT, S.S.(10)

5

7555870

WASHER,RUBBER(10)

6

5211761

PLATE,BTM,E-BOX

7

2460621

HARNESS,WIRE,GND,EL.BOX

9

2460675

HARNESS,60 IN,10 WIRE

10

4010122

CABLE RED BATT/SOL. CAP

11

4010123

CABLE,RED,SOL./STRTR,CAP

12

7080471

CLIP IGNITION CABLE

13

5432502

CAP,GROMMET,ELEC.BOX

14

5411213

GROMMET 1 HOLE LARGE

15

4010302

REGULATOR-RECT/CUTOFF-LR31-2

16

2434014

TERM.BOARD ASM,MFD

17

4010051-30

CONDUIT CONVOLUTED(30 CM)

19

5211760

PLATE,TOP,E-BOX

20

2434011

CKT.BREAKER 15A.(WATER.)

21

5432503

LATCH,ELEC.BOX Substituted by 2620120

22

5333544

PIN,LATCH,ELEC.BOX

23

5224472

HOOK D SST/SS

24

5410853

STRAP RUBBER

25

5242994

BRKT,BATT.STRAP,IN-BD

26

7552613

Rondelle (Lock)

27

7512043

BOLT(10)

28

5242995

BRKT,BATT.STRAP,OUT-BD

29

5411235

Damper

30

LR--

CALIPER, BRAKE, RH

31

5432569

SEAL, E-BOX Substituted by 2620120

32

5241999

"""BRKT COIL/SOLENOID"""

34

5410346

INSUL.CABLE SOL.

35

7080461

BOOT THREADED

36

5411491

O-Ring

37

7073713

DECAL,WARN,HI.VOLT. (See Page 21)

38

2620120

BOXTOP ASM,ELEC,PLASTIC Substituted by 2632136 (Incl. 21,22,31)

39

7077691

DECAL-"RESET ELEC SYSTEM"

40

5432574

PLATE,STATOR,1 HOLE

41

7555836

Rondelle

42

7515113

BOLT SS
