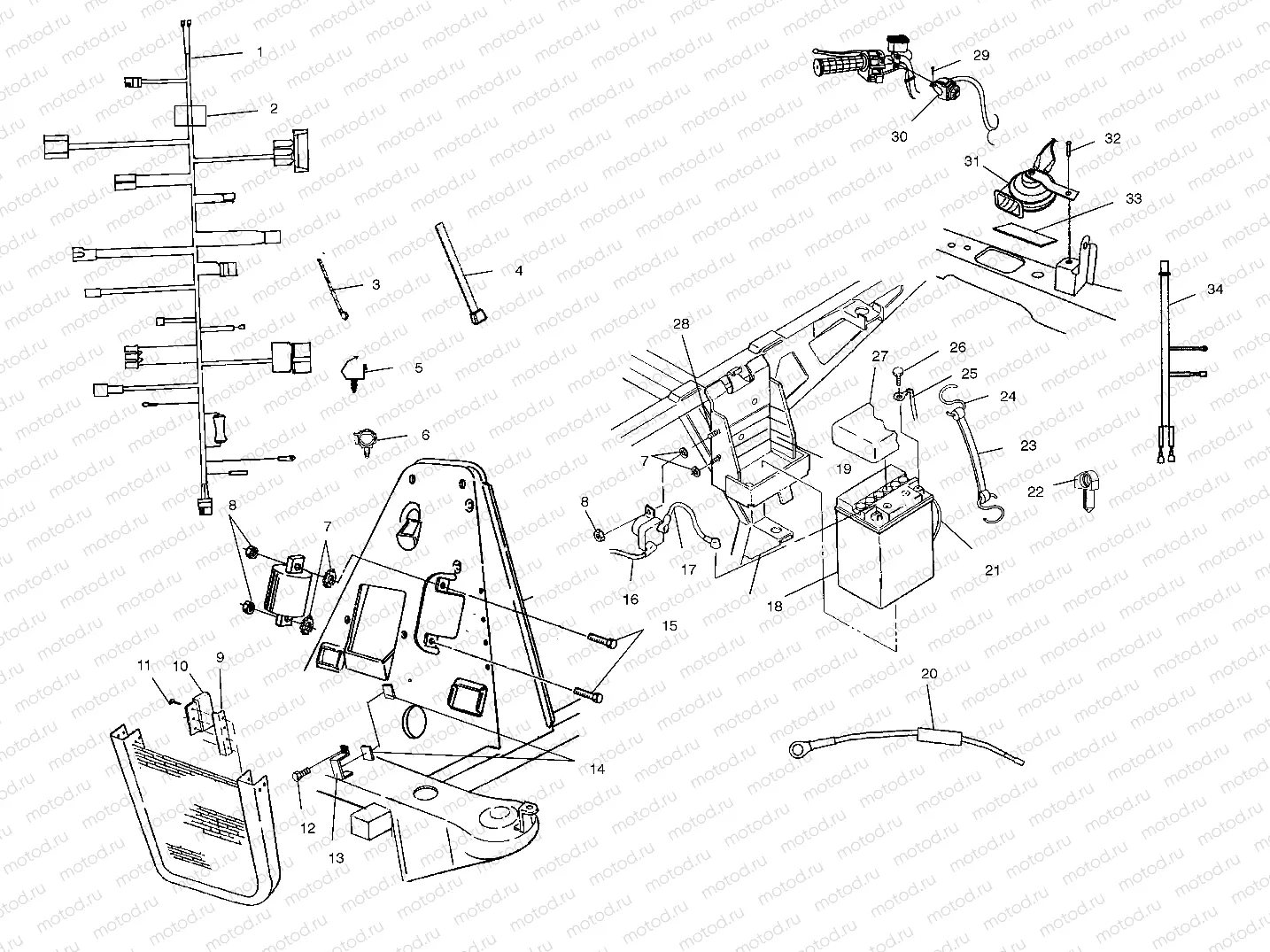

ELECTRICAL - A02CL50AA/DA (4967986798C09) | ELECTRICAL - A02CL50AA/DA (4967986798C09)

ELECTRICAL - A02CL50AA/DA (4967986798C09) | ELECTRICAL - A02CL50AA/DA (4967986798C09)

Например: 2460945

1

2460945

Harness, Main [AA]

1

2460969

Harness, Main [DA]

2

2201795

KIT-CIRCUT BREAKER FAN

3

7080138

CABLE TIE

4

7080492

CABLE TIE 11 INCH

5

7670109

CLIP-ROUTING

6

4020139

CLIP ROSEBUD

7

7571602

Rondelle

8

7541925

NUT NYLOK 10-24 Y

9

5131036

HEATSINK RECT.

10

2203636

KIT RECT-REG RPLC 4060173

11

7512018

Vis

12

7512024

Vis

13

5241416

BRACKET-CDI

13

5246378

Bracket, CDI (If built after 10/08/01)

14

5810455

PAD

15

7512007

Vis

16

4010093

CABLE SOL/STARTER

17

4010094

CABLE BATT/SOLENOID RED

18

4140006

La batterie

19

5810290

PAD BATTERY

20

2202147

KIT-FUSIBLE LINK

21

5432077

TUBE VENT

22

7670102

CLIP

23

5418182

STRAP-BATTERY HOLD DOWN-C

24

7010032

HOOK-BATTERY STRAP

25

4010095

CABLE BATT/ENG. BLK.

26

2200361

KIT-BATTERY BOLT (SHORT)

27

5431769

COVER BATTERY

28

7512027

Vis

29

7517386

Vis

30

4010311

SWITCH BUTTON

31

4010310

HORN (FA)

32

7512057

SCREW(10) (FA)(FB)

33

5810317

PAD,FUELTANK BRKT. Substituted by 8360026

34

2460837

HARNESS-ADAPTER,HORN (FA)
