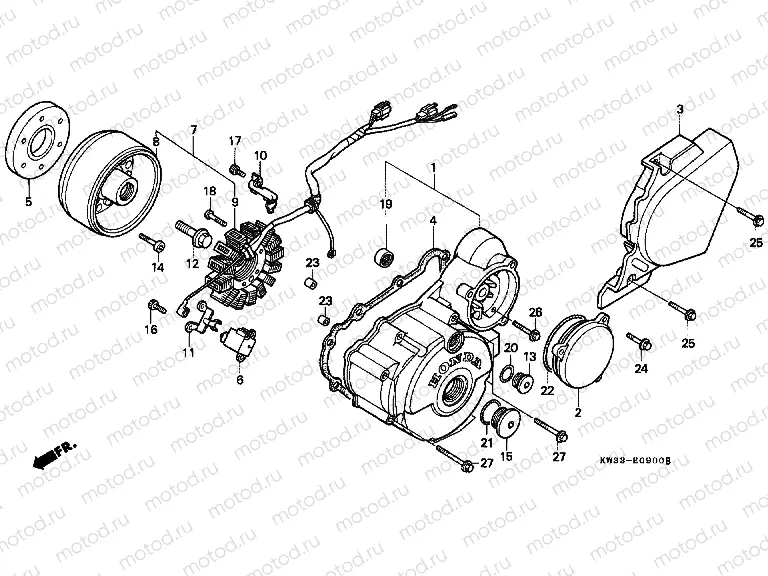

E-9 LEFT CRANKSHAFT COVER / GENERATOR

E-9 LEFT CRANKSHAFT COVER / GENERATOR
Например: 11341-KW3-010
1
11341-KW3-010
COVER COMP.L CRA
2
11355-KS5-000
COVERREDUCTION G ** NLA**
3
11360-KW3-010
COVERL REAR CRAN
4
11395-KW3-881
Gasket - generator cover
1 337 ₽/шт
5
28125-KW3-006
CLUTCH COMP., STARTING ON
10 404 ₽/шт
6
30300-HA0-033
Ignition pulse generator (Pick-up) (tec)
3 081 ₽/шт
8
31110-KW3-014
FLYWHEEL COMP
9
31120-KW3-004
Stator
10
32111-KW3-010
CLAMPER, A.C. GENERATOR C
340 ₽/шт
11
32112-KW3-000
CLAMPER, PULSE GENERATOR
307 ₽/шт
12
90023-471-000
Vis
958 ₽/шт
13
90084-MN8-010
CAP, 14MM
739 ₽/шт
14
90085-413-781
Vis
388 ₽/шт
15
90087-KW3-000
CAP, 30MM
1 321 ₽/шт
16
90089-HB3-000
Vis
204 ₽/шт
17
90049-KT7-000
Vis
165 ₽/шт
18
90092-KE5-000
BOLT, STOPPER TENSIONER S
275 ₽/шт
19
91021-KR0-000
Needle bearing (10x14x10)
896 ₽/шт
20
91303-MG7-003
O-Ring
456 ₽/шт
21
91305-KF0-003
O-Ring
275 ₽/шт
22
91362-461-000
O-Ring
448 ₽/шт
23
94301-08140
Dowel pin (8x14)
94 ₽/шт
24
96001-060-2007
Болт
63 ₽/шт
25
96001-060-2507
Болт
63 ₽/шт
26
96001-060-3200
Bolt, flange, 6x32
86 ₽/шт
27
96001-060-6507
Болт
86 ₽/шт
