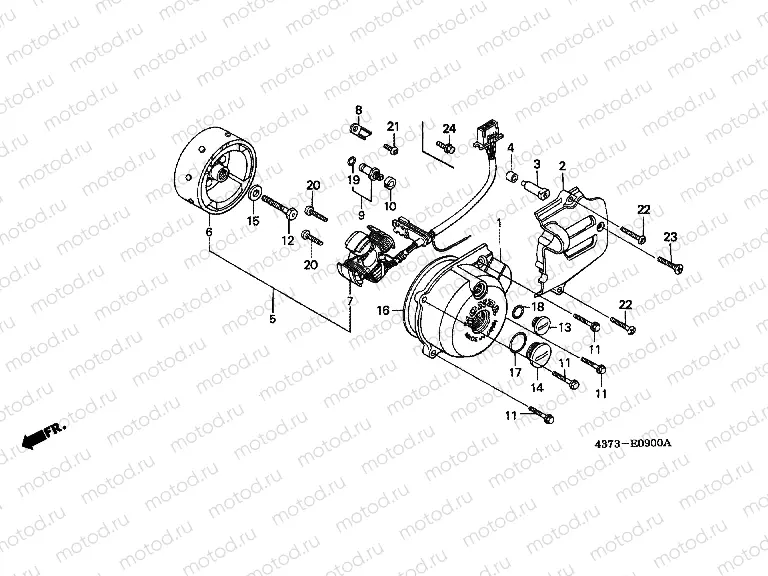

E-9 LEFT CRANKSHAFT COVER / GENERATOR

E-9 LEFT CRANKSHAFT COVER / GENERATOR
Например: 11341-437-010
1
11341-437-010
COVER L CRANKCASE
2
11361-437-010
COVERL.CRANKCASE
5
31100-437-315
GENERATOR SET
6
31110-437-003
FLYWHEEL COMP. (KOKUSAN)
44 581 ₽/шт
7
31120-437-305
STATOR SET
8
32976-107-010
CLAMPER, WIRE HARNESS
296 ₽/шт
9
35750-001-020
CONTACT ASSY., NEUTRAL SW
613 ₽/шт
10
35752-KCT-690
SPACER, NEUTRAL SWITCH
307 ₽/шт
11
96001-060-2500
БОЛТ
79 ₽/шт
12
90083-427-000
BOLTACG.ROTOR
13
90084-471-000
CAP, A.C. GENERATOR
723 ₽/шт
14
90087-428-000
CAP,30MM
1 368 ₽/шт
15
90426-437-000
WASHER, ROTOR SETTING
692 ₽/шт
16
91302-107-010
Gasket - generator cover
865 ₽/шт
17
91304-MG7-003
O-Ring
487 ₽/шт
18
91303-MG7-003
O-Ring
456 ₽/шт
19
91312-107-000
O-Ring
252 ₽/шт
20
93500-050-250A
Болт
47 ₽/шт
21
93500-060-120A
Болт
47 ₽/шт
22
93500-060-250A
Болт
58 ₽/шт
