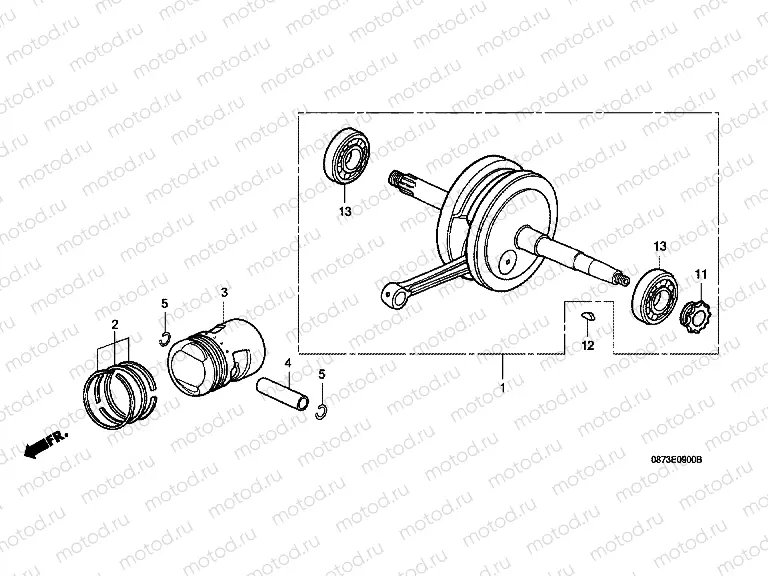

E-9 CRANKSHAFT / PISTON

E-9 CRANKSHAFT / PISTON
Например: 13000-086-000
1
13000-086-000
Vilebrequin
2
13050-036-014
RING PISTON (100)**** NLA**
3
13105-124-830
Piston (std. 1.00)
4
13111-GB2-000
Piston pin
777 ₽/шт
5
94601-13000
CLIP, PISTON PIN, 13MM
52 ₽/шт
11
14311-035-000
SPROCKET, TIMING (14T)
1 195 ₽/шт
12
90741-035-000
KEY, WOODRUFF
401 ₽/шт
13
96100-630-4000
Bearing, radial ball, 6304
896 ₽/шт
