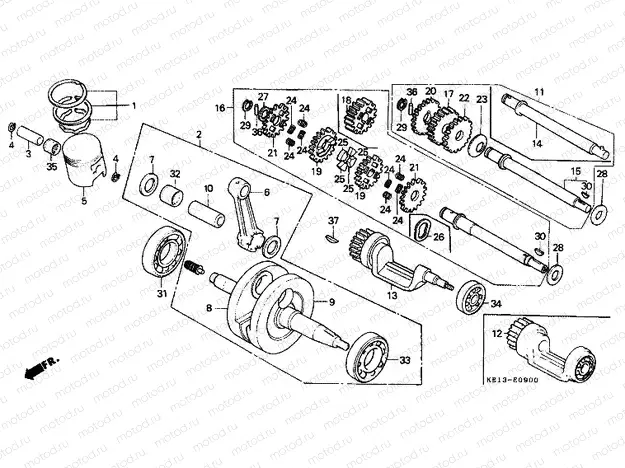

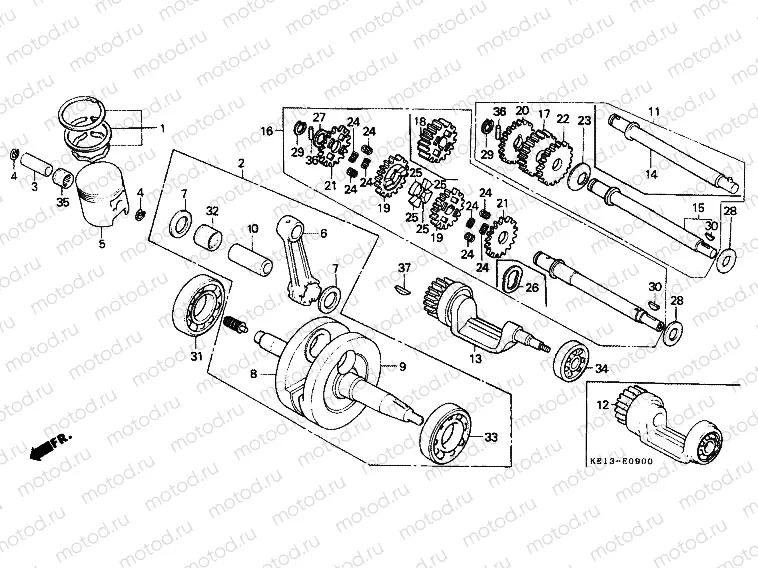

E-9 CRANKSHAFT / PISTON

E-9 CRANKSHAFT / PISTON
Например: 13013-KE1-306
1
13013-KE1-306
RING SETPISTON ** NLA** (0.50)
2
13000-KK4-000
Vilebrequin
3
13111-KM4-000
Piston pin
1 590 ₽/шт
4
13115-KM7-700
CLIP, PISTON PIN, 16MM
200 ₽/шт
5
13150-KE1-003
PISTON 050 ** NLA**
6
13201-KE1-300
ROD CONNECTING
7
13202-KR1-760
WASHER,SIDE PLATE
8
13311-KE1-300
CRANKSHAFTR.
9
13321-KE1-300
CRANKSHAFTL.
10
13381-KE1-300
PINCRANK
12
13420-KE1-000
SHAFTBALANCER
13
13420-KE1-900
SHAFT COMP.BALAN
15
13430-KE1-040
SHAFT COMP.BAL.I
16
13430-KE1-900
SHAFT ASSY.BALAN
18
13440-KE1-010
GEARBALANCER IDL
19
13440-KE1-900
GEARBALANCER IDL
21
13445-KE1-010
GEAR ASUB
24
13447-KE1-900
SPRINGSUB GEAR
25
13448-KE1-900
DAMPERBALANCER I
26
90444-190-000
Rondelle (12 mm)
27
90451-GK4-720
Rondelle (12mm)
315 ₽/шт
28
90454-350-000
Rondelle (14mm)
456 ₽/шт
29
94510-12000
CIRCLIP, EXTERNAL, 12MM
47 ₽/шт
30
90701-KE1-300
YBALANCER IDLE
31
91002-KY4-901
Roulement
2 352 ₽/шт
32
91006-KS3-901
NEEDLE BRG
33
91006-KBA-901
Roulement
34
91009-KJ1-003
Roulement
928 ₽/шт
35
91101-KE1-023
NEEDLE BRG ** NLA**
810 ₽/шт
36
91102-KE1-000
ROLLER3X15.8
37
94401-25180
KEY, WOODRUFF, 25X18
86 ₽/шт
