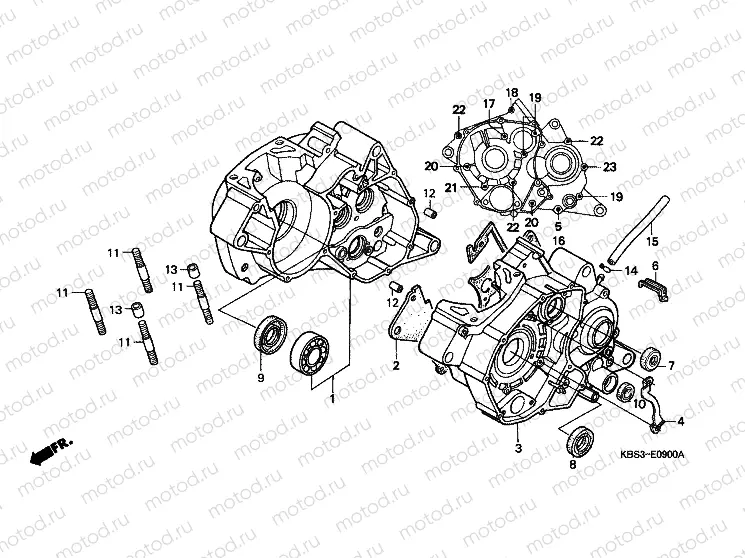

E-9 CRANKSHAFT

E-9 CRANKSHAFT
Например: 11100-KY4-325
1
11100-KY4-325
CRANKCASE COMP.R
2
11191-KY4-970
Gasket - crankcase
3
11200-KY4-902
CRANKCASE COMP.L
4
32911-KY4-900
CLAMPERCORD
982 ₽/шт
5
90474-333-000
Rondelle
269 ₽/шт
6
90655-KY4-900
CLAMPER ATUBE
393 ₽/шт
7
91201-KW6-901
OIL SEAL,24X37X5
8
91205-KE1-004
Joint
892 ₽/шт
9
91206-KE1-003
Joint
1 206 ₽/шт
10
91209-612-003
Joint (12x22x8)
503 ₽/шт
11
92900-080-353B
olt,stud,8x35
86 ₽/шт
12
94301-08140
Dowel pin (8x14)
94 ₽/шт
13
94301-10160
Dowel pin (10x16)
121 ₽/шт
14
95002-02100
Collier
55 ₽/шт
15
95005-553-5020
Tube,5.3x350
409 ₽/шт
16
95701-080-9500
Bolt, flange, 8x95
126 ₽/шт
17
96001-060-1207
Bolt
63 ₽/шт
18
96001-060-4507
Болт
86 ₽/шт
19
96001-060-5507
Болт
86 ₽/шт
20
96001-060-6007
Болт
86 ₽/шт
21
96001-060-6507
Болт
86 ₽/шт
22
96001-060-7507
Болт
86 ₽/шт
23
96001-060-8507
Болт
110 ₽/шт
