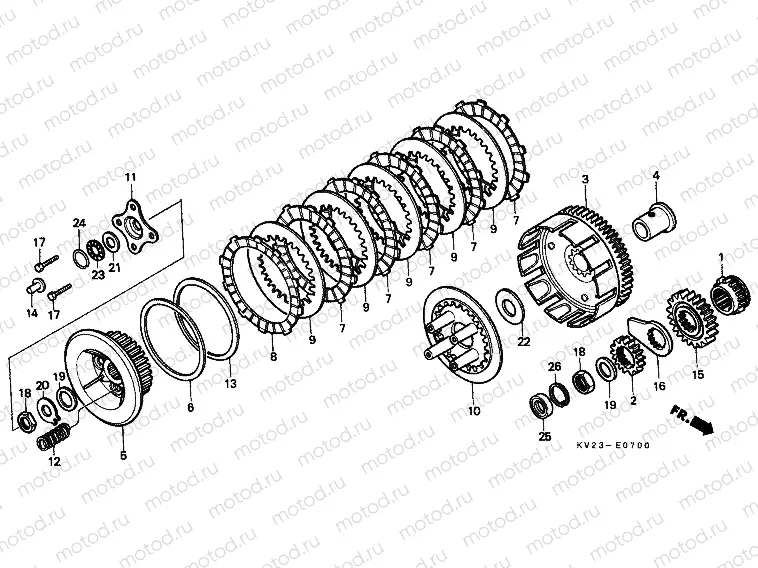

E-7 CLUTCH

E-7 CLUTCH
Например: 14312-KF0-000
1
14312-KF0-000
SPROCKETTIMING
2
15130-KV2-900
GEAROIL PUMP DRI
3
22100-KN5-671
OUTER COMP.CLCH.
4
22116-KF0-000
GUIDE, CLUTCH OUTER
2 009 ₽/шт
5
22120-KN5-670
CENTERCOMP.CLUTC
6
22125-435-000
SEAT, JUDDER SPRING
623 ₽/шт
7
22201-MS6-620
DISK, CLUTCH FRICTION
1 446 ₽/шт
8
22202-ML4-611
DISK B, CLUTCH FRICTION
1 384 ₽/шт
9
22321-KF0-770
PLATE, CLUTCH
1 072 ₽/шт
10
22350-KW3-000
PLATE, CLUTCH PRESSURE
5 690 ₽/шт
11
22361-KF0-000
PLCLUTCH LIFTER
2 186 ₽/шт
12
22401-KL3-670
SPRINGCLUTCH
13
22402-435-000
Spring (Judder)
3 719 ₽/шт
14
22820-KF0-000
PINCLUTCH LIFTER
15
23121-KL3-670
GEAR PRIM DRIVE ** NLA**
16
30220-KG0-013
PULSEROTOR
17
90001-KE2-710
BOLT HEX6X25
18
90235-KA4-000
Nut (18 mm)
645 ₽/шт
19
90432-KE5-000
Rondelle (18 mm)
346 ₽/шт
20
90432-KN5-670
Rondelle
21
90452-147-006
Rondelle (12mm)
22
90458-KE8-000
Rondelle (22x45x0,8)
23
91001-147-006
Roulement (12 mm)
582 ₽/шт
24
91012-KF0-000
CLIP, NEEDLE THRUST BEARI
259 ₽/шт
25
91201-HM3-A61
Joint
432 ₽/шт
26
94520-24000
CIRCLIP, INTERNAL, 24MM
63 ₽/шт
