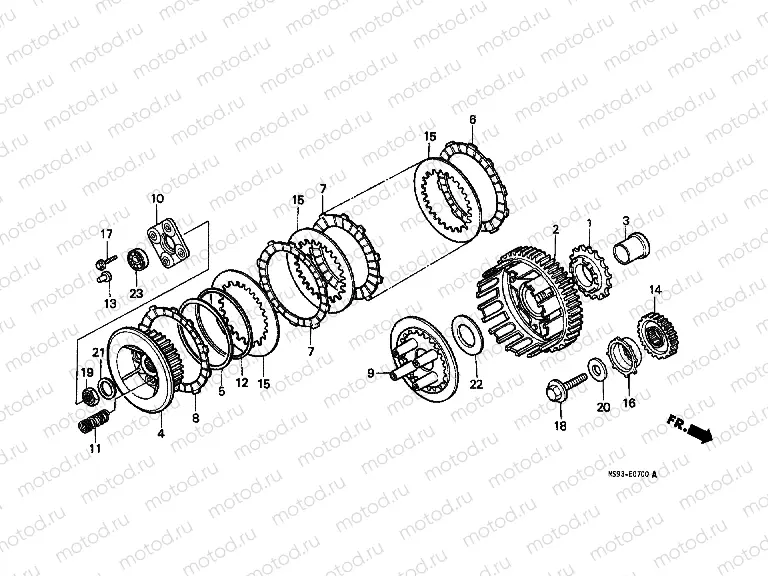

E-7 CLUTCH

E-7 CLUTCH
Например: 15131-MR1-003
1
15131-MR1-003
SPROCKET, OIL PUMP DRIVE
2
22100-MS9-000
OUTER COMP CLUTC
3
22116-MF5-000
COLLAR, PRIMARY DRIVEN
2 595 ₽/шт
4
22120-MS9-750
CENTER COMP.CLUT
5
22125-MN8-000
SEAT, JUDDER SPRING
660 ₽/шт
6
22201-MN8-700
DISK, CLUTCH FRICTION
1 211 ₽/шт
7
22201-MN8-700
DISK, CLUTCH FRICTION
1 211 ₽/шт
8
22202-ML4-611
DISK B, CLUTCH FRICTION
1 384 ₽/шт
9
22350-MR1-000
PLATECLUTCH PRES*** NLA***
10
22361-MR1-000
PLATE, CLUTCH LIFTER
168 ₽/шт
11
22401-MS8-000
PRING, CLUTCH
579 ₽/шт
12
22402-435-000
Spring (Judder)
3 719 ₽/шт
13
22847-415-000
ROD, CLUTCH LIFTER
554 ₽/шт
14
23103-MN8-910
GEAR, PRIMARY DRIVE (38T)
12 118 ₽/шт
15
22321-MN8-000
PLATE, CLUTCH
818 ₽/шт
16
30211-MN8-010
ROTORPULSER
17
90007-MR1-000
Vis
248 ₽/шт
18
90013-415-000
BOLT, UBS, 12X28
944 ₽/шт
19
90236-MN8-000
ut (18 mm)
20
90402-PC6-000
WASHER, 12.5X34X5 (12,5x34x5)
796 ₽/шт
21
90432-MR1-000
WASHER, SPECIAL, 18MM
370 ₽/шт
22
90452-471-000
Rondelle (22mm)
432 ₽/шт
23
96100-600-1000
Подшипник шариковый, 6001
613 ₽/шт
