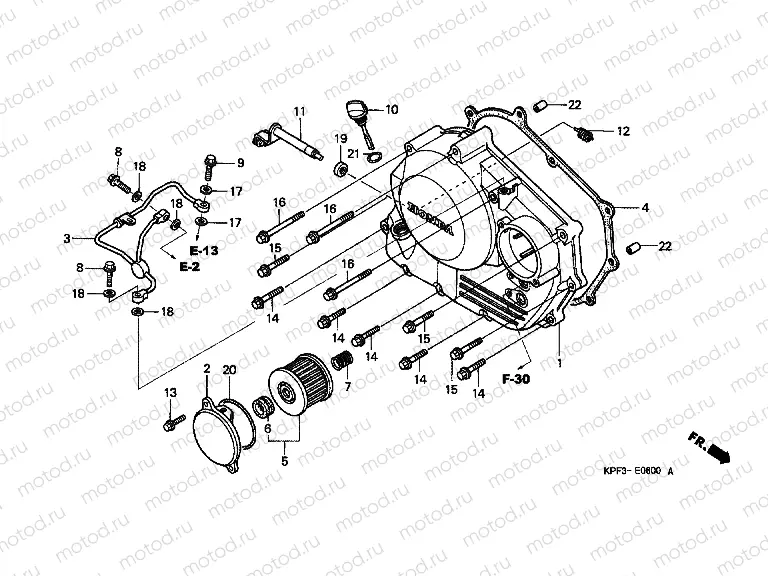

E-6 RIGHT CRANKSHAFT COVER

E-6 RIGHT CRANKSHAFT COVER
Например: 11330-KPF-910
1
11330-KPF-910
COVER COMPRIGHT
2
11333-KPF-900
COVEROIL FILTER
3
11335-KPF-900
IPE COMP., OIL PASS
5 101 ₽/шт
4
11394-KPF-900
GASKET, R. CRANKCASE COVE
1 835 ₽/шт
5
15412-HM5-A10
Filtre à huile
1 072 ₽/шт
6
15413-MC8-000
RUBBER, FILTER
272 ₽/шт
7
15414-KF0-000
SPRING, OIL FILTER ELEMEN
244 ₽/шт
8
15532-KPF-850
Vis
1 098 ₽/шт
9
15533-KPF-850
Vis
1 098 ₽/шт
10
15650-KPF-900
GAUGE, OIL LEVEL
11
22810-KPF-850
LEVER COMP., CLUTCH
12
22815-KM7-700
SPRING, CLUTCH LEVER
307 ₽/шт
13
90006-GHB-630
Vis
204 ₽/шт
14
90006-GHB-680
Vis
215 ₽/шт
15
90006-GHB-710
Vis
204 ₽/шт
16
90006-GHB-760
Vis
289 ₽/шт
17
90441-MC0-000
Rondelle
212 ₽/шт
18
90475-703-000
WASHER C, 8MM
83 ₽/шт
19
91204-KK0-003
Joint
346 ₽/шт
20
91302-KF0-003
O-Ring (filter cover)
346 ₽/шт
21
91307-KF0-003
O-Ring (18X3 ARAI)
228 ₽/шт
22
94301-08140
Dowel pin (8x14)
94 ₽/шт
