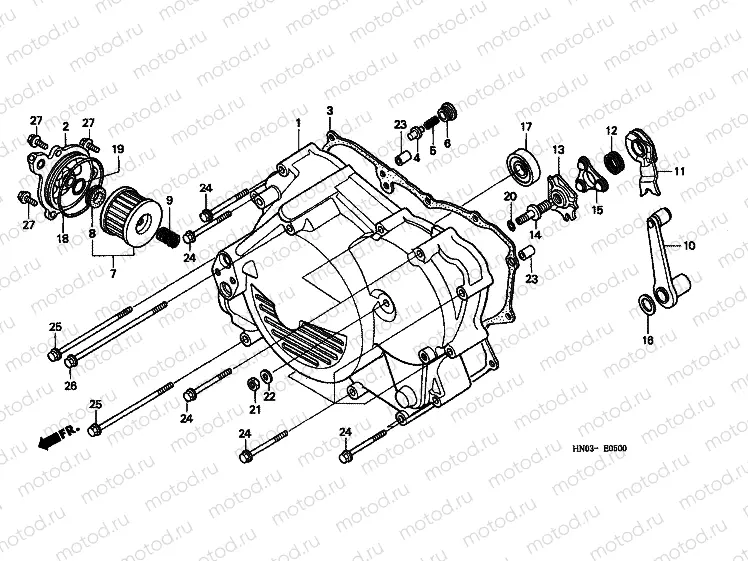

E-5 FRONT CRANKSHAFT COVER (S)

E-5 FRONT CRANKSHAFT COVER (S)
Например: 11330-HN0-670
1
11330-HN0-670
COVER COMPFR CRA
2
11333-HC4-000
OVER COMP.OIL F
3
11394-HM7-003
Gasket - clutch cover
4
15231-HM3-670
VALVE, RELIEF
5
15232-HM3-670
SPRING, RELIEF VALVE
6
15235-HM3-670
CAP, RELIEF VALVE
7
15412-HM5-A10
Filtre à huile
1 072 ₽/шт
8
15413-MC8-000
RUBBER, FILTER
272 ₽/шт
9
15414-KF0-000
SPRING, OIL FILTER ELEMEN
244 ₽/шт
10
22810-HM7-700
LEVER COMP., CLUTCH
11
22820-HM7-010
PLATE COMP., CLUTCH CAM
12
22825-HB3-003
SPRING, CAM PLATE SIDE
252 ₽/шт
13
22830-HC4-000
PLATE COMP., CLUTCH LIFTE
14
22841-HC4-000
BOLT, CLUTCH ADJUSTING
15
22860-HB3-000
RETAINER COMP., BALL
640 ₽/шт
16
90413-GE0-000
WASHER, 10X21.5 (10x21,5)
17
91009-HA0-004
Roulement
1 571 ₽/шт
18
91302-KF0-003
O-Ring (filter cover)
346 ₽/шт
19
91303-HA0-004
O-Ring
204 ₽/шт
20
91308-MC7-000
O-Ring
222 ₽/шт
21
94030-08000
Nut
47 ₽/шт
22
94102-08800
Rondelle (8x16x1,2)
41 ₽/шт
23
94301-08140
Dowel pin (8x14)
94 ₽/шт
24
95701-060-5500
Bolt
79 ₽/шт
25
95701-060-8500
Bolt, flange, 6x85
94 ₽/шт
26
95701-061-0000
Nut, With Washer
95 ₽/шт
27
96001-060-1800
Bolt
63 ₽/шт
