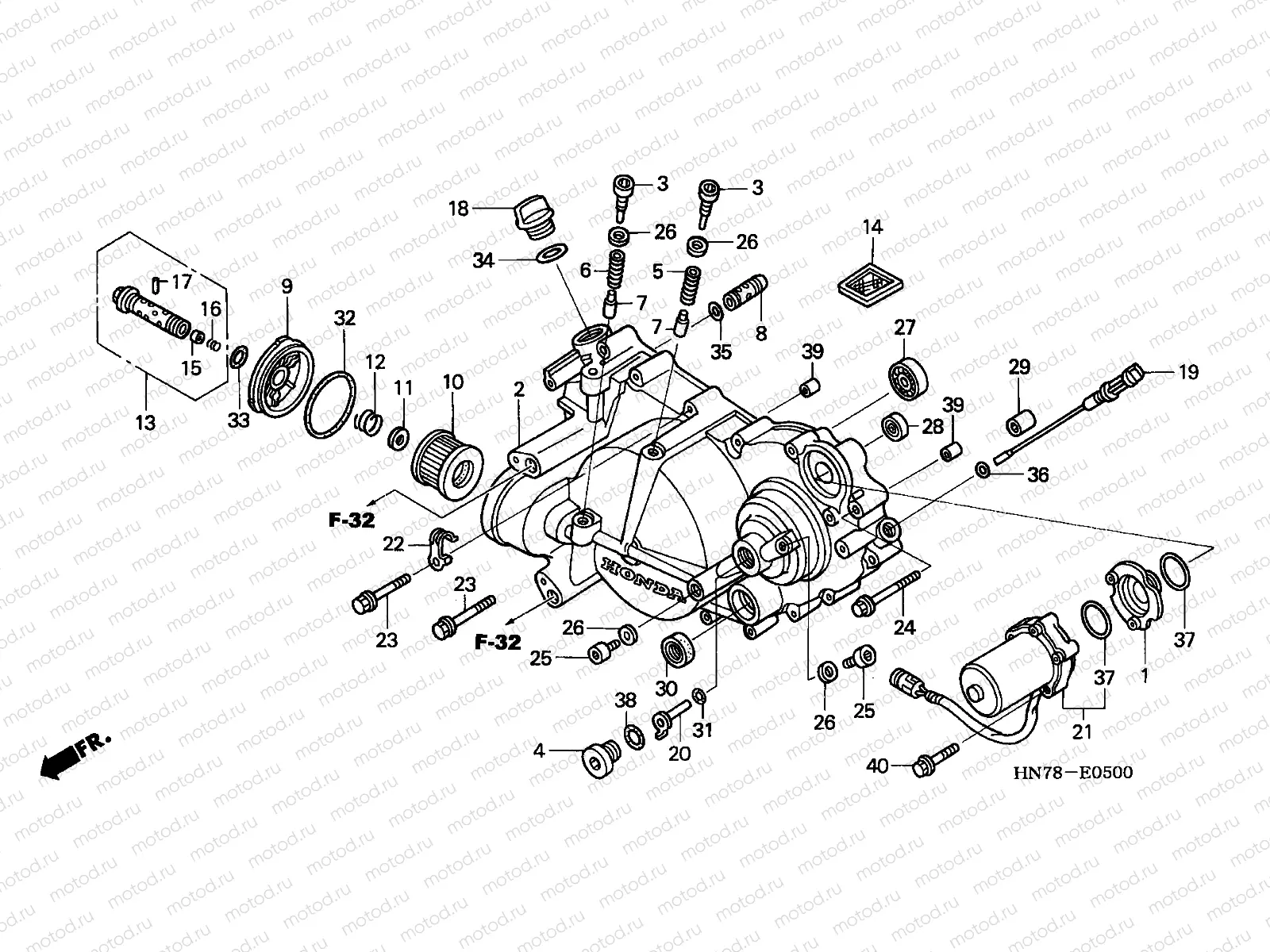

E-5 FRONT CRANKCASE COVER

E-5 FRONT CRANKCASE COVER
Например: 11210-HN7-000
1
11210-HN7-000
SPACERCONTROL
2
11330-HN7-900
COVER COMPFR CRA
3
11334-HN2-000
BOLT, VALVE SETTING
4
11335-HN2-000
BOLTFEED PIPE SE
916 ₽/шт
5
11336-HN2-000
SPRING, ORIFICE VALVE (PI
6
11336-HN7-000
SPGRELIEF VALVE
7
11337-HN2-000
VALVE, RELIEF
8
15220-HN7-010
VALVE ASSYRELIEF
9
15411-HN8-010
COVER, OIL FILTER
10
15412-KEA-003
Filtre à huile
11
15414-300-000
IS REPLACED BY 15414300000
252 ₽/шт
12
15415-413-000
SPRING, FILTER ELEMENT SE
315 ₽/шт
13
15420-HN2-000
BOLT COMP., OIL FILTER CE
14
15421-HN7-003
SCREEN, OIL FILTER
15
15473-300-300
VALVE, CHECK
519 ₽/шт
16
15474-300-310
SPRING, CHECK VALVE
519 ₽/шт
17
15477-300-300
PIN, SPRING SETTING
425 ₽/шт
18
15651-HN2-000
CAPOIL TANK
19
15660-HN7-000
GAUGE, OIL LEVEL
20
26631-HN2-000
PIPE COMP.FEED
965 ₽/шт
21
31300-HN7-013
MOTOR ASSY., CONTROL
22
32921-HN5-670
CLIPACG CORD
23
95701-060-4500
Bolt
79 ₽/шт
24
95701-060-6000
Bolt, flange, 6x60
83 ₽/шт
25
90101-VD6-003
BOLT, SPECIAL, 10X13
26
90545-300-000
Rondelle
291 ₽/шт
27
91009-HF1-671
Roulement
28
91050-HN7-003
BEARING, RADIAL BALL, 699
29
91071-KS6-004
BEARING, SWINGARM PIVOT (
1 021 ₽/шт
30
91204-HC4-005
OIL SEAL, 20X28X5 (KOYO)
31
91301-PC9-003
O-Ring
173 ₽/шт
32
91301-107-000
O-Ring
450 ₽/шт
33
91302-377-000
O-Ring
550 ₽/шт
34
91307-MK5-000
O-Ring
289 ₽/шт
35
91313-MG7-004
O-Ring
456 ₽/шт
36
91316-MJ8-003
O-Ring
248 ₽/шт
37
91351-HM8-A51
O-RING, CONTROL MOTOR
462 ₽/шт
38
91355-MB0-003
O-Ring
305 ₽/шт
39
94301-08140
Dowel pin (8x14)
94 ₽/шт
40
90004-PT2-000
Vis
