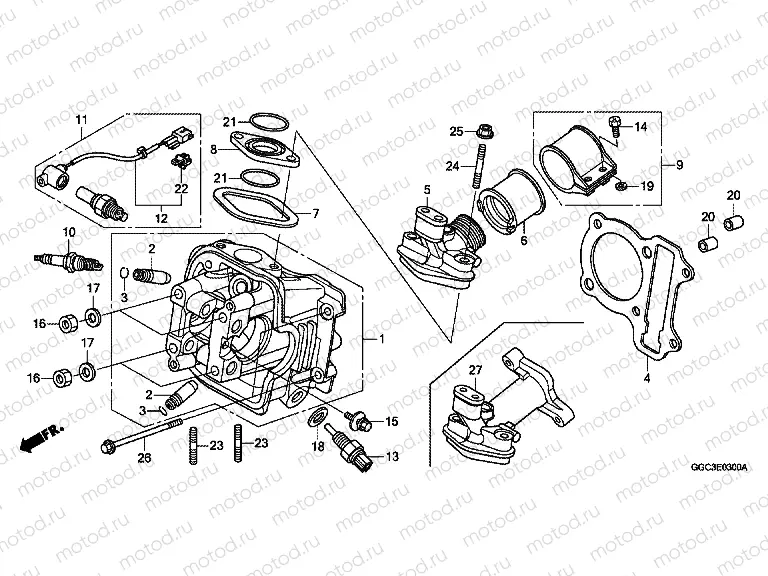

E-3 CYLINDER HEAD

E-3 CYLINDER HEAD
Например: 12200-KZL-930
1
12200-KZL-930
Cylinder head
2
12204-KVY-305
Guide de soupape
1 431 ₽/шт
3
12206-KPL-900
CLIP, VALVE GUIDE
385 ₽/шт
4
12251-GGC-901
Joint culasse
7
17113-GGC-900
RUBBER, IN. PIPE SEAL
8
17119-GGC-900
INSULATOR, IN. PIPE
10
31926-KRM-841
Bougie d'allumage
1 305 ₽/шт
11
36532-GGC-C51
érzékelő, oxigén
12
36533-GGC-C51
KÁBEL, OXIGÉN-ÉRZÉKELŐ
13
37750-KPH-701
SENSOR ASSY., THERMOSTAT
4 552 ₽/шт
15
90014-GGC-900
BOLT-WASH6X13
16
90201-GCC-000
Nut (7 mm)
181 ₽/шт
17
90401-GFM-900
WASHER, 7.2X16X2.5
204 ₽/шт
18
90441-GGC-900
Rondelle
20
90701-GF6-000
Dowel pin (8x14)
244 ₽/шт
21
91308-GFM-900
O-Ring
708 ₽/шт
22
91565-S0X-003
CLIP, COUPLER (DARK GREEN
171 ₽/шт
23
92900-060-140B
olt
55 ₽/шт
24
92900-060-401B
olt,stud,6x40
79 ₽/шт
25
94050-06000
Nut
55 ₽/шт
26
95701-061-0000
Nut, With Washer
95 ₽/шт
27
17111-KZL-860
PIPEINLET
