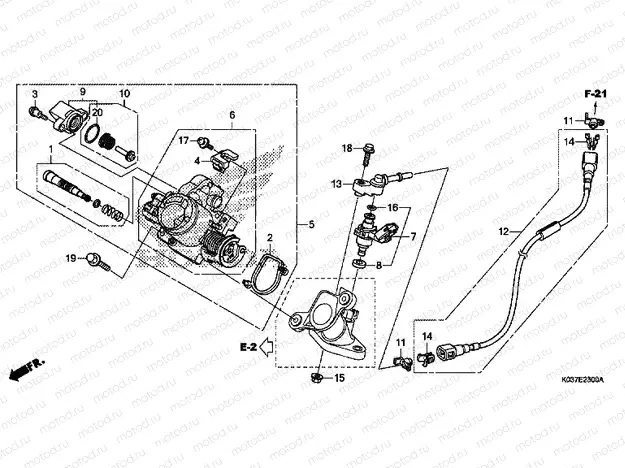

E-23 THROTTLE HOUSING

E-23 THROTTLE HOUSING
Например: 16016-KVB-S51
1
16016-KVB-S51
Jeu de vis
1 384 ₽/шт
2
16075-KWW-641
O-Ring
3
16081-KPH-701
SCREW, TORX, 5X8.7
212 ₽/шт
4
16169-KWW-641
STAYWIRE
5
16400-K03-C81
THROTTLEBODY ASSY
6
16410-K03-C81
BODY SET
7
16450-K03-H11
INJECTOR ASSY., FUEL
12 210 ₽/шт
8
16472-KPC-D50
Gasket
189 ₽/шт
9
16480-KVB-S51
OLENOID
8 164 ₽/шт
10
16485-KVB-S51
EAT SET
2 081 ₽/шт
11
16718-KTW-900
DAMPER A, CONNECTOR
244 ₽/шт
12
17550-K03-C20
HOSE ASSYFUEL FE
13
17560-KWW-640
JOINT COMPINJECT
14
17577-KSS-B31
RETAINER (GRAY) (TOKAI)
385 ₽/шт
15
90301-473-003
Nut
456 ₽/шт
16
91301-GGL-J01
O-Ring
487 ₽/шт
17
93892-050-1208
ШАЙБА
47 ₽/шт
18
95701-060-2800
Bolt, flange, 6x28
63 ₽/шт
19
96001-060-1800
Bolt
63 ₽/шт
