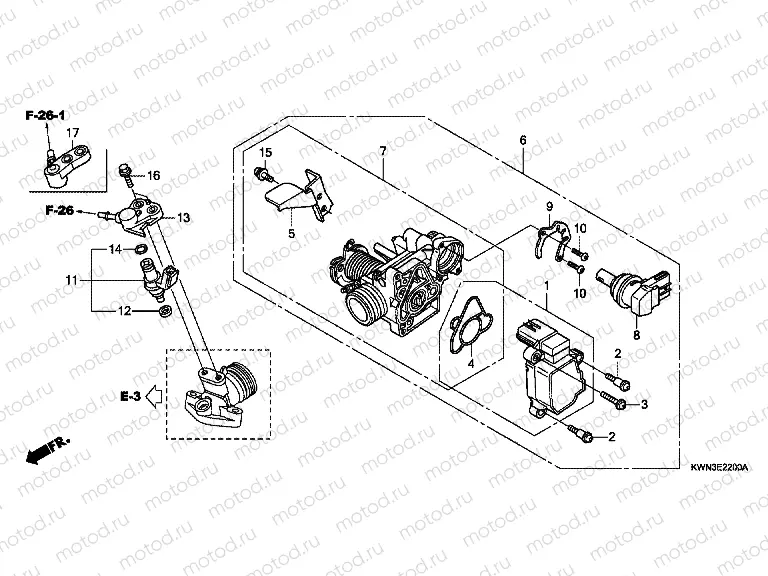

E-22 THROTTLE HOUSING

E-22 THROTTLE HOUSING
Например: 16060-GFZ-003
1
16060-GFZ-003
SENSOR SET
9 393 ₽/шт
2
16081-KPH-701
SCREW, TORX, 5X8.7
212 ₽/шт
3
16082-KPH-701
SCREW, TORX, 5X17
212 ₽/шт
4
16083-KTR-941
O-RING, THROTTLE BODY
307 ₽/шт
5
16169-GFM-901
PLATESTAY
1 069 ₽/шт
6
16400-KWN-711
THROTTLEBODY ASSY
7
16410-KWN-711
BODY SET
8
16430-GFM-902
VALVE ASSY., IDLE AIR CON
7 095 ₽/шт
9
16432-GFM-901
PLATE, IDLE AIR CONTROL V
928 ₽/шт
10
16433-HN8-A61
SCREW, TORX
213 ₽/шт
11
16450-KZR-601
INJECTOR ASSYFUE
12
16472-KPC-D50
Gasket
189 ₽/шт
14
91301-GGL-J01
O-Ring
487 ₽/шт
15
93892-050-1208
ШАЙБА
47 ₽/шт
16
95701-060-2200
Bolt, flange, 6x22
69 ₽/шт
17
17565-KWN-710
JOINT COMP., INJECTOR
1 274 ₽/шт
