Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA SH 300 HONDA SH300ASH 2017 HONDA E-19 CRANKCASE

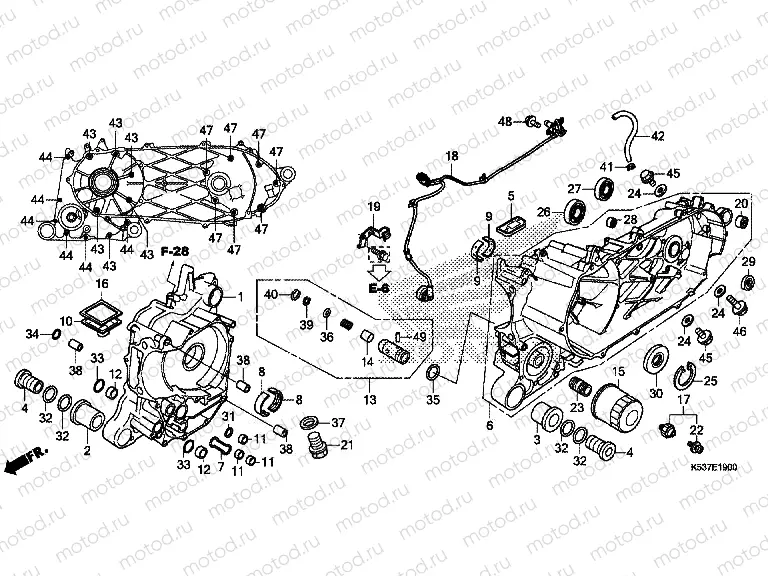

E-19 CRANKCASE

E-19 CRANKCASE

Например: 11100-K04-933

1

11100-K04-933

CRANKCASE COMP., R.

2

11103-K04-930

BUSH, R. OUTER ENGINE HAN

1 735 ₽/шт

3

11104-K04-930

BUSH, L. OUTER ENGINE HAN

1 735 ₽/шт

4

11105-KTW-900

BUSH, INNER ENGINE HANGER

1 735 ₽/шт

5

11110-KTW-901

VALVE COMP., REED

1 922 ₽/шт

6

11200-K53-D00

CRANKCASE COMP., L.

7

11205-KTW-900

GASKET, OIL PATH

346 ₽/шт

8

13316-KTW-901

BEARING E, CRANKSHAFT R.

1 085 ₽/шт

8

13317-KTW-901

BEARING F, CRANKSHAFT R.

1 085 ₽/шт

8

13315-KTW-901

BEARING D, CRANKSHAFT R.

1 085 ₽/шт

8

13314-KTW-901

BEARING C, CRANKSHAFT R.

1 085 ₽/шт

8

13312-KTW-901

BEARING A, CRANKSHAFT R.

1 085 ₽/шт

8

13318-KTW-901

BEARING G, CRANKSHAFT R.

1 085 ₽/шт

8

13313-KTW-901

BEARING B, CRANKSHAFT R.

1 085 ₽/шт

8

13319-KTW-901

BEARING H, CRANKSHAFT R.

1 085 ₽/шт

9

13328-KTW-901

BEARING G, CRANKSHAFT L.

1 085 ₽/шт

9

13326-KTW-901

BEARING E, CRANKSHAFT L.

1 085 ₽/шт

9

13322-KTW-901

BEARING A, CRANKSHAFT L.

1 085 ₽/шт

9

13324-KTW-901

BEARING C, CRANKSHAFT L.

1 085 ₽/шт

9

13325-KTW-901

BEARING D, CRANKSHAFT L.

1 085 ₽/шт

9

13323-KTW-901

BEARING B, CRANKSHAFT L.

1 085 ₽/шт

9

13329-KTW-901

BEARING H, CRANKSHAFT L.

1 085 ₽/шт

9

13327-KTW-901

BEARING F, CRANKSHAFT L.

1 085 ₽/шт

10

15153-HN7-000

STRAINER, OIL

676 ₽/шт

11

15155-300-000

COLLAR, O-RING

330 ₽/шт

12

15155-HP0-A00

COLLAR, O-RING

377 ₽/шт

13

15220-K53-D00

VALVE ASSY., RELIEF

14

15231-413-020

VALVE, RELIEF

1 510 ₽/шт

15

15410-MCJ-505

Filtre à huile

16

15421-K04-930

Filtre à huile

1 116 ₽/шт

17

35500-MEH-661

SWITCH ASSY., OIL PRESSUR

3 280 ₽/шт

18

38510-K53-D01

SENSOR, RR. WHEEL SPEED

19

38515-KTW-900

GUIDE, OIL PRESSURE SWITC

491 ₽/шт

20

52108-KTW-B00

USH, DAMPER

1 031 ₽/шт

21

90002-KTW-900

Vis de vidange d'huile (12 mm)

346 ₽/шт

22

90002-PA6-003

Vis

179 ₽/шт

23

90019-MGZ-J00

Stud bolt

771 ₽/шт

24

90474-333-000

Rondelle

269 ₽/шт

25

90601-K04-930

CIRCLIP, INTERNAL, 65

393 ₽/шт

26

91005-K53-D01

Roulement

27

91009-K53-D01

Roulement

28

91105-KTW-901

Needle bearing (14x22x20)

1 922 ₽/шт

29

91201-K53-D01

OIL SEAL, 25X35X5

30

91203-K53-D01

OIL SEAL, 33X64X7

31

91303-K04-930

O-Ring (14.8x2.4)

236 ₽/шт

32

91304-K04-930

O-Ring

244 ₽/шт

33

91305-K04-930

O-Ring (16.5x2.5)

291 ₽/шт

34

91307-K04-930

O-Ring

165 ₽/шт

35

91313-K04-930

O-Ring (14.7x2.2)

228 ₽/шт

36

94101-05800

Rondelle (5 mm)

39 ₽/шт

37

94109-12000

Rondelle

94 ₽/шт

38

94301-10160

Dowel pin (10x16)

121 ₽/шт

39

94520-12000

Seeger (12mm)

47 ₽/шт

40

94601-16000

CLIP, PISTON PIN, 16MM

47 ₽/шт

41

95002-410-0008

Clamp

79 ₽/шт

42

95005-552-0020S

Tube,5.5x200

252 ₽/шт

43

95701-060-5500

Bolt

79 ₽/шт

44

95701-060-8000

Болт

91 ₽/шт

45

95701-080-1200

Bolt, flange, 8x12

66 ₽/шт

46

95701-080-2500

Bolt

79 ₽/шт

47

95701-080-6000

Bolt, flange, 8x60

86 ₽/шт

48

96001-060-1607

Bolt, flange, 6x16

63 ₽/шт

49

96220-30178

ROLLER, 3X17.8

24 ₽/шт
