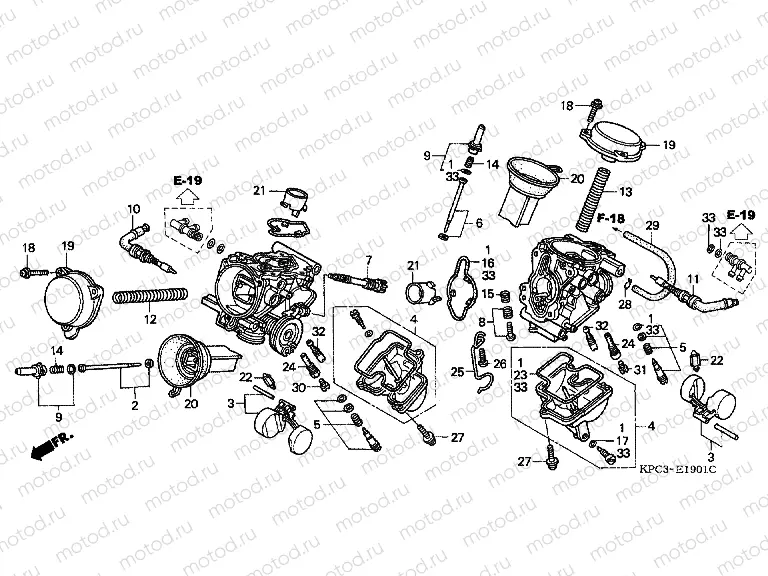

E-19-1 CARBURETOR (PARTS)

E-19-1 CARBURETOR (PARTS)
Например: 16010-KGB-611
1
16010-KGB-611
ASKET SET A
3 052 ₽/шт
2
16012-KPC-641
NEEDLE SET, JET
3
16013-KGB-611
FLOAT SET
3 861 ₽/шт
4
16015-KGB-611
CHAMBER SET, FLOAT
8 753 ₽/шт
5
16016-MY9-690
Jeu de vis
1 734 ₽/шт
6
16027-KPC-641
NEEDLE SET, JET
7
16028-KGB-611
Jeu de vis
2 784 ₽/шт
8
16029-KEJ-900
eu de vis
1 590 ₽/шт
9
16037-MY9-690
PLATE SET, VALVE
1 676 ₽/шт
10
16046-KGB-611
VALVE SET, STARTER
4 162 ₽/шт
11
16047-KGB-611
VALVE SET, STARTER
12
16050-KGB-901
SPRING, COMPRESSION COIL
13
16051-KPC-641
SPRING, COMPRESSION COIL
14
16051-MV4-000
SPRING, COMPRESSION COIL
15
16052-KG4-003
SPRING, COMPRESSION COIL
519 ₽/шт
16
16076-KGB-611
O-Ring
1 441 ₽/шт
17
16076-ND5-004
O-Ring
204 ₽/шт
18
16080-MV4-000
is
248 ₽/шт
19
16107-KAZ-000
TOP
3 685 ₽/шт
20
16111-KPC-641
Diaphragme de carburateur
21
16141-KGB-611
COLLAR, FUNNEL SETTING
1 436 ₽/шт
22
16155-413-751
VALVE COMP., FLOAT
2 225 ₽/шт
23
16163-KEA-000
Gasket - float chamber
1 691 ₽/шт
24
16165-KPC-641
HOLDER, NEEDLE JET
2 156 ₽/шт
25
16178-KGB-611
CLIP
949 ₽/шт
26
93500-050-100A
Болт
44 ₽/шт
27
93892-050-1600
Screw-washer, 5x16
47 ₽/шт
28
95002-02079
Collier
50 ₽/шт
29
95005-352-6020
Tube, 3.5x260 (95005-35001-20m)
173 ₽/шт
30
99101-393-0820
Jet,main,#82
472 ₽/шт
31
99101-PH9-0880
Jet principal (88)
32
99103-KBA-0380
Jet #38
708 ₽/шт
