Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA Super Cub 125 HONDA C125AN Super Cub 2022 HONDA (VIN: MLHJA58A) E-17 TRANSMISSION

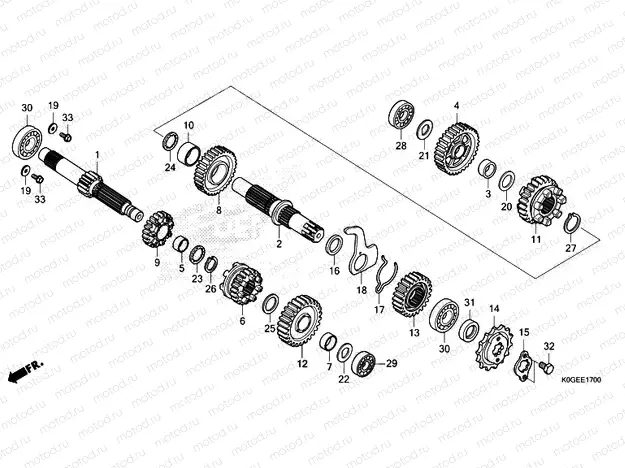

E-17 TRANSMISSION

E-17 TRANSMISSION
Например: 23211-K0G-T20
1
23211-K0G-T20
MAINSHAFT (14T)
2
23221-K1M-T00
COUNTERSHAFT (19T)
3
-
4
23421-K0G-T20
EAR, COUNTERSHAFT FIRST
5
23422-K0G-T20
BUSH, 17MM
6
23431-K0G-T20
EAR, MAINSHAFT SECOND (2
7
23432-K1M-T00
BUSH, 12MM
8
23441-K0G-T20
EAR, COUNTERSHAFT SECOND
9
23451-K0G-T20
EAR, MAINSHAFT THIRD (20
10
23452-K1M-T00
BUSH, 20MM
11
23461-K0G-T20
EAR, COUNTERSHAFT THIRD
12
23471-K0G-T20
EAR, MAINSHAFT FOURTH (2
13
23481-K0G-T20
EAR, COUNTERSHAFT FOURTH
14
23800-K0G-900
SPROCKET, DRIVE (14T)
15
23802-GN5-910
Plate, drive sprocket fixing
338 ₽/шт
16
23911-K1M-T00
COLLAR, LOCK PLATE
17
24305-K1M-T00
SPRING, CHANGE FRICTION
18
-
19
90407-KWW-740
ASHER, 6.2X19X2.3
212 ₽/шт
20
90412-187-000
WASHER, THRUST, 15MM
291 ₽/шт
21
90412-K56-N00
Rondelle (SPECIAL, 15mm)
22
90452-KPH-C00
Rondelle (12 mm)
23
90452-KRM-840
WASHERSPLINE17X
24
90453-KRM-840
WASHER, SPLINE, 20MM
25
90459-107-000
Rondelle (12mm)
228 ₽/шт
26
90601-KRM-840
CIRCLIP, 17MM
204 ₽/шт
27
90605-KVS-900
ET RING, 20MM
28
91003-K1M-T01
BRG,BALL,RADIAL15
29
91013-KZV-J01
BEARING, RADIAL BALL, 600
723 ₽/шт
29
91013-KSS-901
BEARING, RADIAL BALL, 600
30
91015-KSS-901
BRG,BALL RADIAL 6
30
91015-KZV-J01
BEARING, RADIAL BALL, 620
1 179 ₽/шт
31
91204-KPH-902
OIL SEAL, 17X30X5 (NOK)
32
92101-060-100A
Bolt, hex., 6x10
47 ₽/шт
33
95701-060-1400
Bolt
55 ₽/шт
