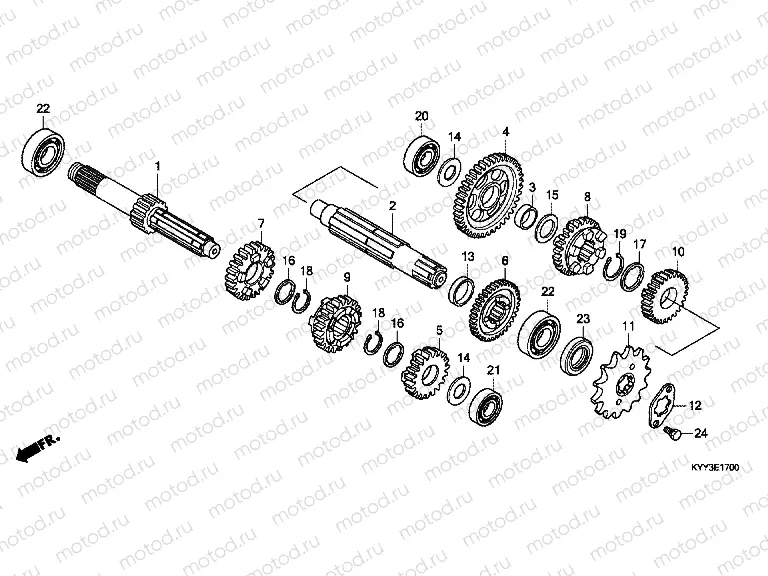

E-17 TRANSMISSION

E-17 TRANSMISSION
Например: 23211-KYY-900
1
23211-KYY-900
SHAFTMAIN 11T
10 997 ₽/шт
2
23221-KYY-900
SHAFTCOUNTER
8 753 ₽/шт
3
23415-KPH-900
BUSH, 15MM
692 ₽/шт
4
23421-KYY-900
GEAR, COUNTERSHAFT FIRST
6 657 ₽/шт
5
23431-KYY-900
GEAR, MAINSHAFT SECOND (1
5 252 ₽/шт
6
23441-KYY-900
GEAR, COUNTERSHAFT SECOND
5 849 ₽/шт
7
23451-KYY-901
GEAR, MAINSHAFT THIRD (21
5 640 ₽/шт
8
23461-KYY-901
GEAR, COUNTERSHAFT THIRD
6 747 ₽/шт
9
23471-KYY-901
GEAR, MAINSHAFT FOURTH (2
6 343 ₽/шт
10
23481-KYY-901
GEAR, COUNTERSHAFT FOURTH
5 640 ₽/шт
11
23801-GF6-000
SPROCKETDRIVE.
12
23802-GN5-910
Plate, drive sprocket fixing
338 ₽/шт
13
23911-KWS-900
COLLAR, 20MM
369 ₽/шт
14
90412-KPH-900
WASHER, SPECIAL, 12X23
259 ₽/шт
15
90412-187-000
WASHER, THRUST, 15MM
291 ₽/шт
16
90461-035-000
WASHER, SPLINE, 17MM
291 ₽/шт
17
90461-459-010
WASHER, SPLINE, 20MM
338 ₽/шт
18
90601-KYY-900
Seeger
291 ₽/шт
19
90602-KYY-900
Seeger
330 ₽/шт
20
91004-KYY-900
BRGBALL RADIAL62
21
91005-KYY-931
Roulement
22
91006-KYY-931
Roulement
23
91204-KYY-901
OIL SEAL17X29X5
24
92101-060-100A
Bolt, hex., 6x10
47 ₽/шт
