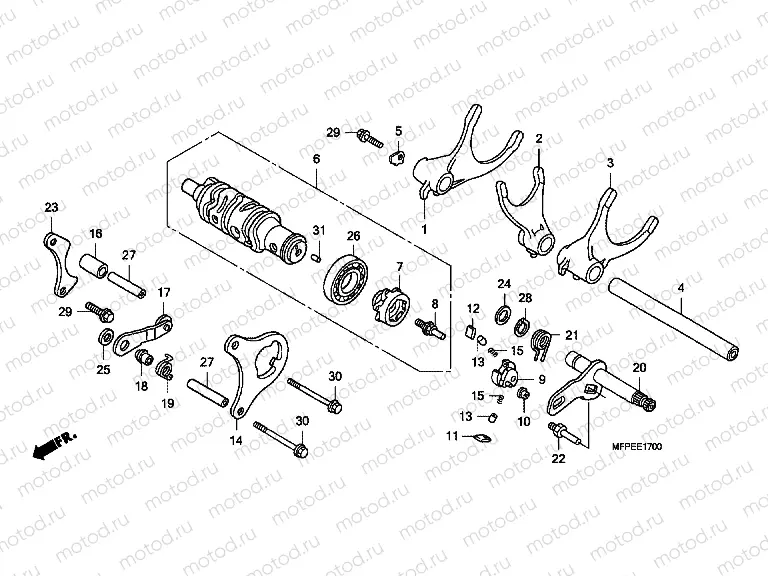

E-17 GEARBOX DRUM / GEARSHIFTFORK

E-17 GEARBOX DRUM / GEARSHIFTFORK
Например: 24211-MAZ-000
1
24211-MAZ-000
FORK RGEAR SHIFT
5 650 ₽/шт
2
24212-MAZ-000
FORK, CENTER GEARSHIFT
6 294 ₽/шт
3
24213-MAZ-000
FORK LGEAR SHIFT
5 650 ₽/шт
4
24231-MS2-610
HAFT, GEARSHIFT FORK
1 488 ₽/шт
5
24235-MAZ-000
PLATE, GEARSHIFT FORK SHA
535 ₽/шт
6
24310-MAZ-010
DRUM COMP., GEARSHIFT
15 606 ₽/шт
7
24312-KY2-310
CENTER, GEARSHIFT DRUM
2 933 ₽/шт
8
24315-HA0-000
PIN, SHIFTER
760 ₽/шт
9
24321-KT8-030
SHIFTER, DRUM
4 003 ₽/шт
10
24322-MM4-000
COLLAR, SHIFTER
348 ₽/шт
11
24324-KA3-711
PAWL A, RATCHET
777 ₽/шт
12
24325-KA3-711
PAWL B, RATCHET
777 ₽/шт
13
24326-KBH-901
PLUNGER, PAWL
594 ₽/шт
14
24328-MFP-N90
LATE, GUIDE
1 069 ₽/шт
15
24329-KA3-740
SPRING, PAWL PLUNGER
215 ₽/шт
16
24329-KT8-000
COLLAR, GUIDE PLATE DISTA
393 ₽/шт
17
24430-MBR-000
STOPPER COMP., DRUM
1 274 ₽/шт
18
24434-KT7-000
COLLAR, DRUM STOPPER
503 ₽/шт
19
24435-MFP-N91
SPRING, DRUM STOPPER
338 ₽/шт
20
24610-MFP-N90
Shift shaft assy
3 902 ₽/шт
21
24651-MAE-000
SPRING, SHIFT RETURN
22
24652-035-000
PIN, SHIFT RETURN SPRING
429 ₽/шт
23
24655-MM5-000
PLATE, SHIFT DRUM BEARING
771 ₽/шт
24
90428-958-000
Rondelle (14 mm)
363 ₽/шт
25
90485-040-000
WASHER, 8MM
204 ₽/шт
26
91008-374-003
BEARING, BALL, 16005 (NTN
1 368 ₽/шт
27
91104-KT7-000
Dowel pin
283 ₽/шт
28
94510-14000
CIRCLIP, EXTERNAL, 14MM
50 ₽/шт
29
95701-060-1400
Bolt
55 ₽/шт
30
95701-060-4500
Bolt
79 ₽/шт
31
96220-40080
ROLLER, 4X8
24 ₽/шт
