Главная Каталог товаров HONDA EPC < 124 cm³ HONDA SCR 110 HONDA SCR1105WHF SCR1105WH 2015 HONDA (VIN: LWBJF59A) E-17 DRIVED PAGE

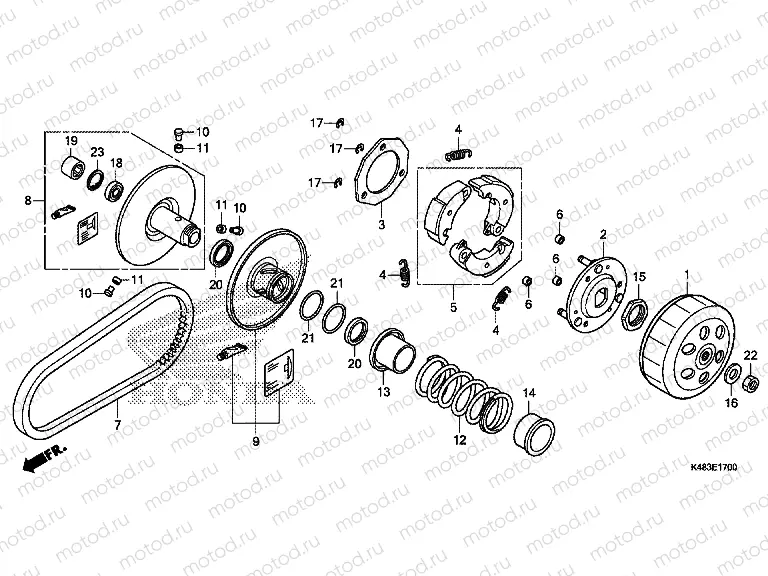

E-17 DRIVED PAGE

E-17 DRIVED PAGE
Например: 22100-K0J-N01
1
22100-K0J-N01
OUTER COMP., CLUTCH (F.C.
2
22350-K48-A01
PLATE COMPDRIVE
3
22361-K48-A01
PLATECLUTCH SIDE
4
22401-GJ3-930
SPRING, CLUTCH
487 ₽/шт
5
22535-K44-V00
WEIGHT SET, CLUTCH
6
22804-148-000
RUBBER, CLUTCH DAMPER
239 ₽/шт
7
23100-K48-A01
Courroie
8
23205-K48-A00
FACE SETDRIVEN
9
23224-K48-A00
Variateur
10
23225-KSY-900
PIN, ROLLER GUIDE
244 ₽/шт
11
23226-GFM-900
ROLLER, GUIDE
212 ₽/шт
12
23233-K48-A00
Spring
13
23237-GFM-900
COLLARSEAL
14
23238-GCC-000
OLLAR, SPRING
15
90202-187-000
Nut (spec. 28mm)
550 ₽/шт
16
90441-GFM-970
WASHER, 12.2X29X2.5 (12,2x29x2,5)
385 ₽/шт
17
90454-GB2-000
CIRCLIP, 6MM
116 ₽/шт
18
91002-GA7-701
Roulement
1 074 ₽/шт
19
91109-KVY-902
Needle bearing
1 156 ₽/шт
20
91211-K44-V01
SEAL, DRIVEN FACE, 34X41X
21
91384-KRW-900
O-Ring
22
94030-12200
Nut (12 mm)
63 ₽/шт
23
94520-28000
Seeger (28mm)
86 ₽/шт
