Главная Каталог товаров HONDA EPC < 124 cm³ HONDA NSC 50 Vision HONDA NSC50MPDC NSC50MPD 2012 HONDA (VIN: LWBAF72B) E-17 DRIVED PAGE

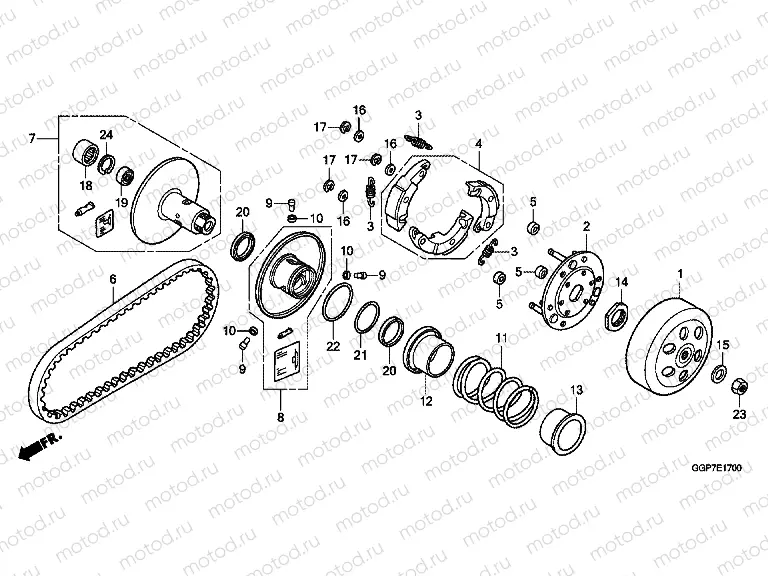

E-17 DRIVED PAGE

E-17 DRIVED PAGE
Например: 22100-GGM-900
1
22100-GGM-900
OUTER COMP., CLUTCH
2
22350-GAH-A00
PLATE COMP., DRIVE
3 613 ₽/шт
3
22401-GG2-900
Clutch spring
385 ₽/шт
4
22535-GAK-305
WEIGHT SET, CLUTCH
7 370 ₽/шт
5
22804-148-000
RUBBER, CLUTCH DAMPER
239 ₽/шт
6
23100-GGP-901
Courroie
7
23205-GGM-900
FACE SET, DRIVEN
8
23224-GGM-900
Variateur
9
23225-GW3-000
PIN, ROLLER GUIDE
244 ₽/шт
10
23226-GCC-C50
ROLLER, GUIDE
11
23233-GGM-900
Spring
12
23237-GCC-C50
OLLAR, SEAL
13
23238-GFM-900
COLLAR, SPRING
833 ₽/шт
14
90202-187-000
Nut (spec. 28mm)
550 ₽/шт
15
90441-GFM-970
WASHER, 12.2X29X2.5 (12,2x29x2,5)
385 ₽/шт
16
90442-044-000
Rondelle (6mm)
283 ₽/шт
17
90454-GB2-000
CIRCLIP, 6MM
116 ₽/шт
18
91109-KVY-902
Needle bearing
1 156 ₽/шт
19
91004-GGM-901
Roulement
20
91211-GFC-771
Joint
370 ₽/шт
21
91351-GR1-000
O-RING, 38.5X2
404 ₽/шт
22
91351-GR1-000
O-RING, 38.5X2
404 ₽/шт
23
94030-12200
Nut (12 mm)
63 ₽/шт
24
94520-28000
Seeger (28mm)
86 ₽/шт
