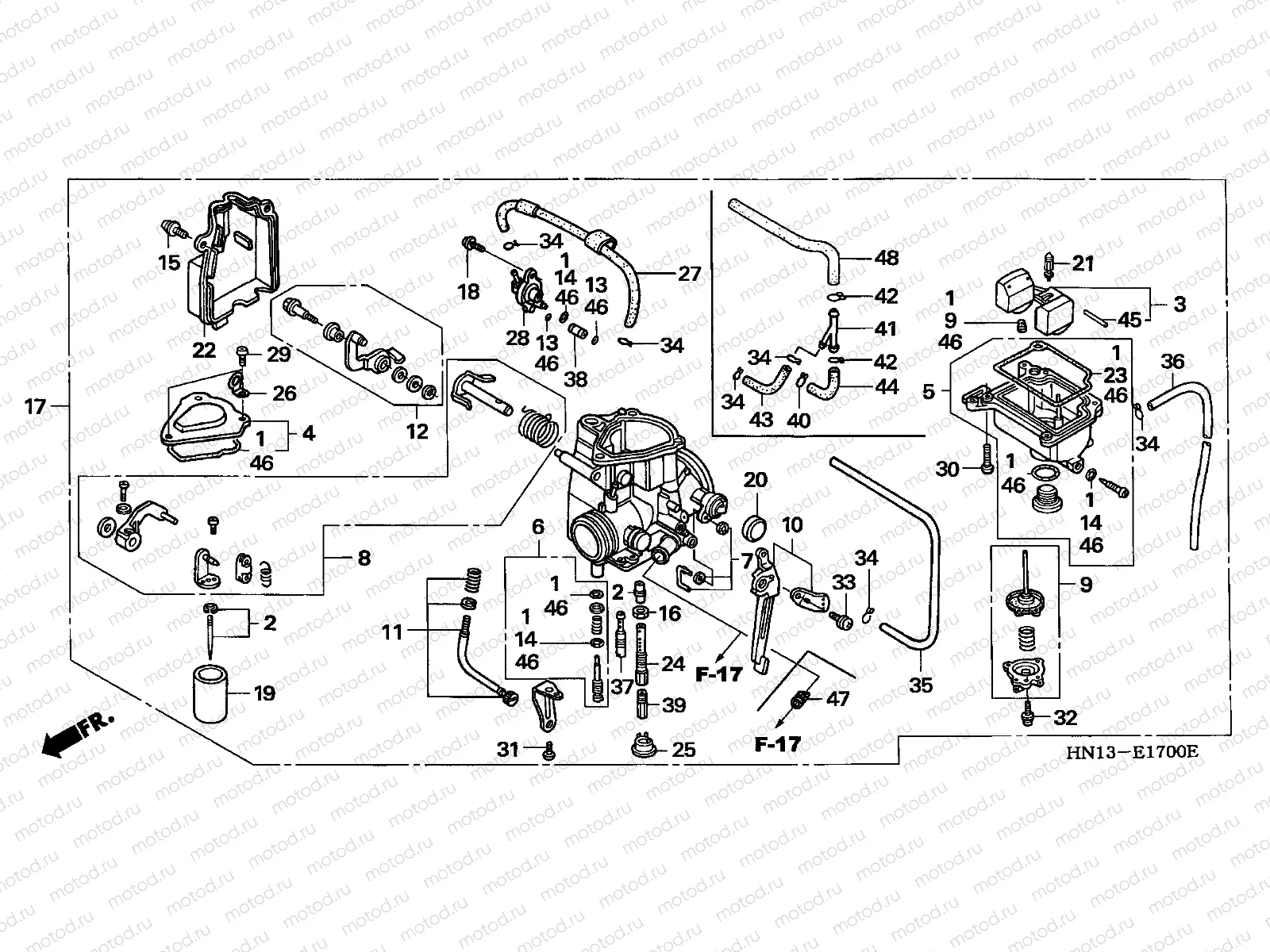

E-17 CARBURETOR

E-17 CARBURETOR
Например: 16010-HN1-003
1
16010-HN1-003
GASKET SET
2
16012-HN1-A41
EEDLE SETJET
3
16013-HN8-003
FLOAT SET
4
16014-HN1-003
TOP SET
5
16015-HN1-A41
CHAMBER SETFLOAT
6
16016-HN1-A42
SCREW SET
7
16017-HN1-003
ROD SET, CHOKE
8
16018-HN1-A41
RM SETLINK
9
16021-HN1-A41
DIAPHRAGM SETPUM
10
16025-HM3-L00
EVER SET, CHOKE
11
16028-HM3-L00
SCREW SET
12
16031-HM3-L00
ARM SETPUMP
13
16075-GHB-630
O-Ring
14
16075-GHB-640
O-Ring
189 ₽/шт
15
16080-HC0-003
Vis
16
16096-HC0-003
NUT, HEX.
267 ₽/шт
17
16100-HN1-A43
CARBURETOR ASSY. (QB
18
16108-MW0-750
Vis
345 ₽/шт
19
16111-HN1-003
VALVETHROTTLE
20
16148-141-881
CAP, CHOKE DUST
370 ₽/шт
21
16155-HN7-003
VALVE COMP., FLOAT
2 615 ₽/шт
22
16160-HN1-003
COVERBODY
23
16163-MEA-671
Gasket - float chamber
2 124 ₽/шт
24
16165-HN1-003
OLDERNEEDLE JET
25
16168-HC4-003
OLDER, JET
26
16179-HA0-003
BINDER
1 024 ₽/шт
27
16199-HN1-003
TUBE COMP
28
16510-MZ2-650
VALVE ASSY., AIR CUT
7 731 ₽/шт
29
93500-040-080H
Болт
44 ₽/шт
30
93500-040-140H
Болт
39 ₽/шт
31
93500-060-100H
Болт
47 ₽/шт
32
93892-040-1208
Screw-washer
52 ₽/шт
33
93892-050-1018
Screw-washer
47 ₽/шт
34
95002-02079
Collier
50 ₽/шт
35
95005-352-8020
Tube, 3.5x280 (95005-35001-20m)
173 ₽/шт
36
95005-354-0050
*95005-35001-50m
220 ₽/шт
37
99103-420-0380
Жиклер
692 ₽/шт
38
99108-MY1-1100
Jet (#110)
535 ₽/шт
39
99113-GHB-1420
Jet, main (#142)
708 ₽/шт
40
16163-KM4-004
Collier
204 ₽/шт
41
16180-ML6-671
JOINT
833 ₽/шт
42
95002-02089
Collier
47 ₽/шт
43
95005-350-5050
TUBE3.5X50
44
95005-450-5050
*95005-45001-50m
63 ₽/шт
45
16152-HN8-003
PIN, ARM
353 ₽/шт
46
16010-HN1-A42
GASKET SET
47
16176-MW3-A80
Filtre à carburant
944 ₽/шт
48
95005-452-2050
TUBE4.5X220
