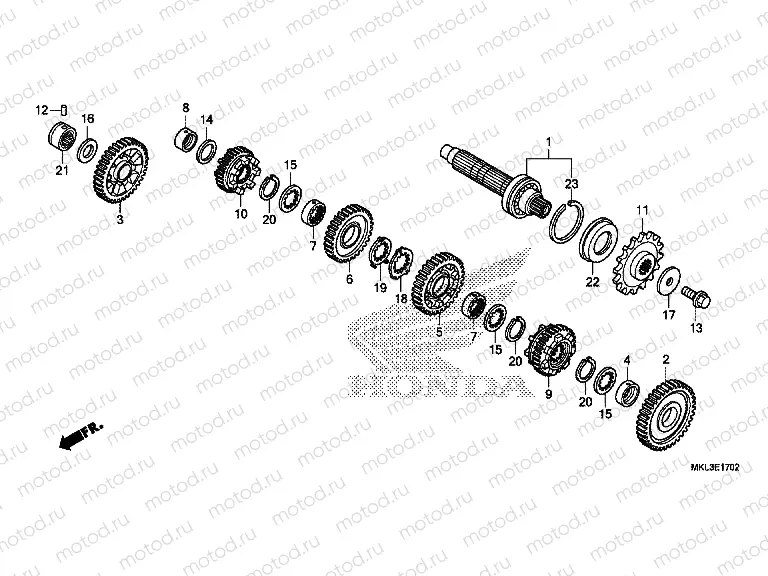

E-17-2 TRANSMISSION (COUNTERSHAFT)

E-17-2 TRANSMISSION (COUNTERSHAFT)

Например: 23220-MKA-D50

1

23220-MKA-D50

COUNTERSHAFT COMP.

2

23421-MKA-D50

GEAR, COUNTERSHAFT FIRST

11 893 ₽/шт

3

23441-MKA-D50

GEAR, COUNTERSHAFT SECOND

10 025 ₽/шт

4

23442-ML7-000

COLLAR, 28MM

1 546 ₽/шт

5

23461-MKA-D50

GEAR, COUNTERSHAFT THIRD

6 627 ₽/шт

6

23481-MKA-D50

GEAR, COUNTER FOURTH (30T

6 014 ₽/шт

7

23482-MV9-670

COLLAR, SPLINE, 28X31X9

1 211 ₽/шт

8

23495-KY1-000

COLLAR, 22X13

1 289 ₽/шт

9

23501-MKA-D50

GEAR, COUNTERSHAFT FIFTH

11 893 ₽/шт

10

23521-MKA-D50

GEAR, COUNTERSHAFT SIXTH

11

23801-MKA-D30

SPROCKET, DRIVE (17T)

12

24261-283-000

PIN, GEARSHIFT FORK GUIDE

393 ₽/шт

13

90037-422-003

Vis (spec)

550 ₽/шт

14

90452-KZ4-000

Rondelle (22x30x1)

330 ₽/шт

15

90452-MR7-000

WASHER, SPLINE, 28X34X1.5

315 ₽/шт

16

90458-292-000

Rondelle (20 mm)

377 ₽/шт

17

90459-438-000

Rondelle (102 mm)

425 ₽/шт

18

90463-MR7-000

WASHER, SPLINE, 28MM

613 ₽/шт

19

90464-MR7-000

WASHER, LOCK, 28MM

613 ₽/шт

20

90603-MN4-000

CIRCLIP, 28MM

275 ₽/шт

21

91022-MJE-DB1

Needle bearing

22

91207-KT8-003

Joint

959 ₽/шт

23

94560-62200

RING, SNAP, 62MM

165 ₽/шт
