Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA ANF 125 Innova HONDA ANF1255 Innova 2005 HONDA (VIN: MLHJC33A) E-16 TRANSMISSION DRUM

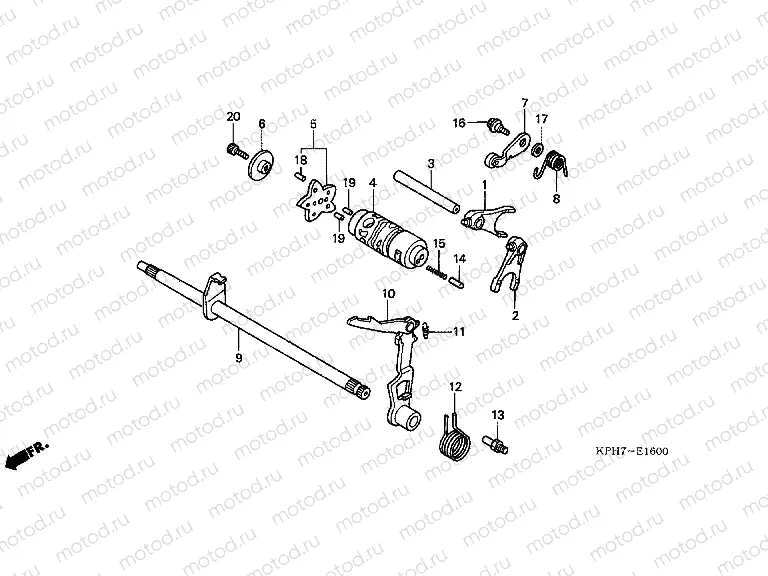

E-16 TRANSMISSION DRUM

E-16 TRANSMISSION DRUM
Например: 24211-KPH-900
1
24211-KPH-900
FORK RGEAR SHIFT
4 884 ₽/шт
2
24212-KPH-900
FORK LGEAR SHIFT
4 884 ₽/шт
3
24241-KPH-900
SHAFT, GEARSHIFT FORK
849 ₽/шт
4
24301-KPH-900
DRUMGEAR SHIFT
5
24410-KPH-900
LATE COMP., GEARSHIFT DR
6
24421-KPH-900
OLDER, DRUM STOPPER
259 ₽/шт
7
24430-KPH-900
IS REPLACED BY 24430KPH900
8
24435-KPH-900
SPGSHIFT DRUM ST
9
24610-KPH-900
Shift shaft assy
10
24630-KPH-900
ARM COMP., GEARSHIFT
11
24641-KPH-900
SPRING, GEARSHIFT ARM
275 ₽/шт
12
24651-KPH-900
SPRING, GEARSHIFT RETURN
13
24652-KPH-900
IN, SHIFT RETURN SPRING
519 ₽/шт
14
35751-KPH-900
CAP, CHANGE SWITCH CONTAC
267 ₽/шт
15
35752-KPH-900
SPRING, CHANGE SWITCH CON
189 ₽/шт
16
90022-MG8-000
PIVOT, SHIFT DRUM STOPPER
320 ₽/шт
17
90435-HB3-000
WASHER, 6.1MM
248 ₽/шт
18
91111-KW7-900
ROLLER, 4X10.8
157 ₽/шт
19
96220-30085
ROLLER, 3X8.5
25 ₽/шт
20
96600-060-1600
Bolt
69 ₽/шт
