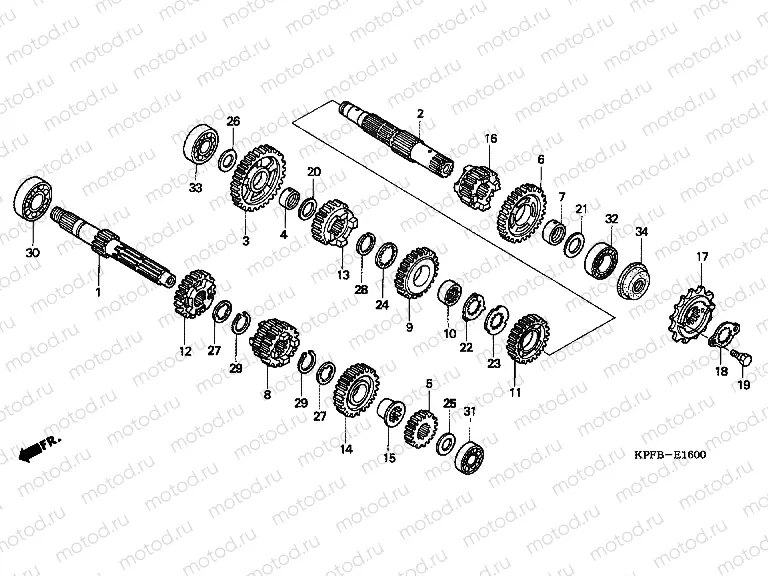

E-16 TRANSMISSION

E-16 TRANSMISSION
Например: 23211-KPF-900
1
23211-KPF-900
MAINSHAFT, TRANSMISSION (
2
23220-KPF-900
COUNTERSHAFT COMP.
3
23411-KPF-900
GEAR, COUNTERSHAFT LOW (3
4
23412-KCZ-000
BUSH, 18X23X9.5
1 459 ₽/шт
5
23421-KPF-900
GEAR, MAINSHAFT SECOND (1
6
23431-KPF-900
GEAR, COUNTERSHAFT SECOND
7
23432-KCZ-000
BUSH, 22X25X10
692 ₽/шт
8
23441-KPF-900
GEAR, MAINSHAFT THIRD & F
9
23451-KPF-900
GEAR, COUNTERSHAFT THIRD
10
23452-KW3-000
COLLAR, SPLINE, 22X25X9
1 384 ₽/шт
11
23471-KPF-900
GEAR, COUNTERSHAFT FOURTH
12
23481-KPF-900
GEAR, MAINSHAFT FIFTH (26
13
23491-KPF-900
GEARC-5
14
23501-KPF-900
GEARM-6
15
23505-KW3-000
COLLARSPLINE23M
1 488 ₽/шт
16
23511-KPF-900
GEAR, COUNTERSHAFT SIXTH
17
23801-KPF-960
SPROCKET, DRIVE (13T)
18
23804-KPF-900
LATE, FIXING
19
90084-041-000
Vis
256 ₽/шт
20
90401-KCZ-000
Rondelle (18mm)
134 ₽/шт
21
90401-KE7-000
Rondelle (22,2mm)
291 ₽/шт
22
90402-KW3-000
ASHER,LOCK INVOL
315 ₽/шт
23
90403-KW3-000
ASHER,THRUST INV
236 ₽/шт
24
90404-KW3-000
ASHER, THRUST INVOLUTE,
248 ₽/шт
25
90451-107-000
Rondelle (15mm)
228 ₽/шт
26
90454-KF0-000
Rondelle (17mm)
283 ₽/шт
27
90455-KR1-760
WASHER,SPLINE 20M
228 ₽/шт
28
90601-437-000
CIRCLIP, EXTERNAL, 22MM
315 ₽/шт
29
90605-200-000
SET RING, 20MM
283 ₽/шт
30
91003-KPF-901
Roulement
31
91004-KPF-901
Roulement
32
91004-KW3-004
BEARING, BALL, 62/22 (KOY
1 400 ₽/шт
33
91005-KPF-901
Roulement
34
91201-KW3-000
Joint
605 ₽/шт
