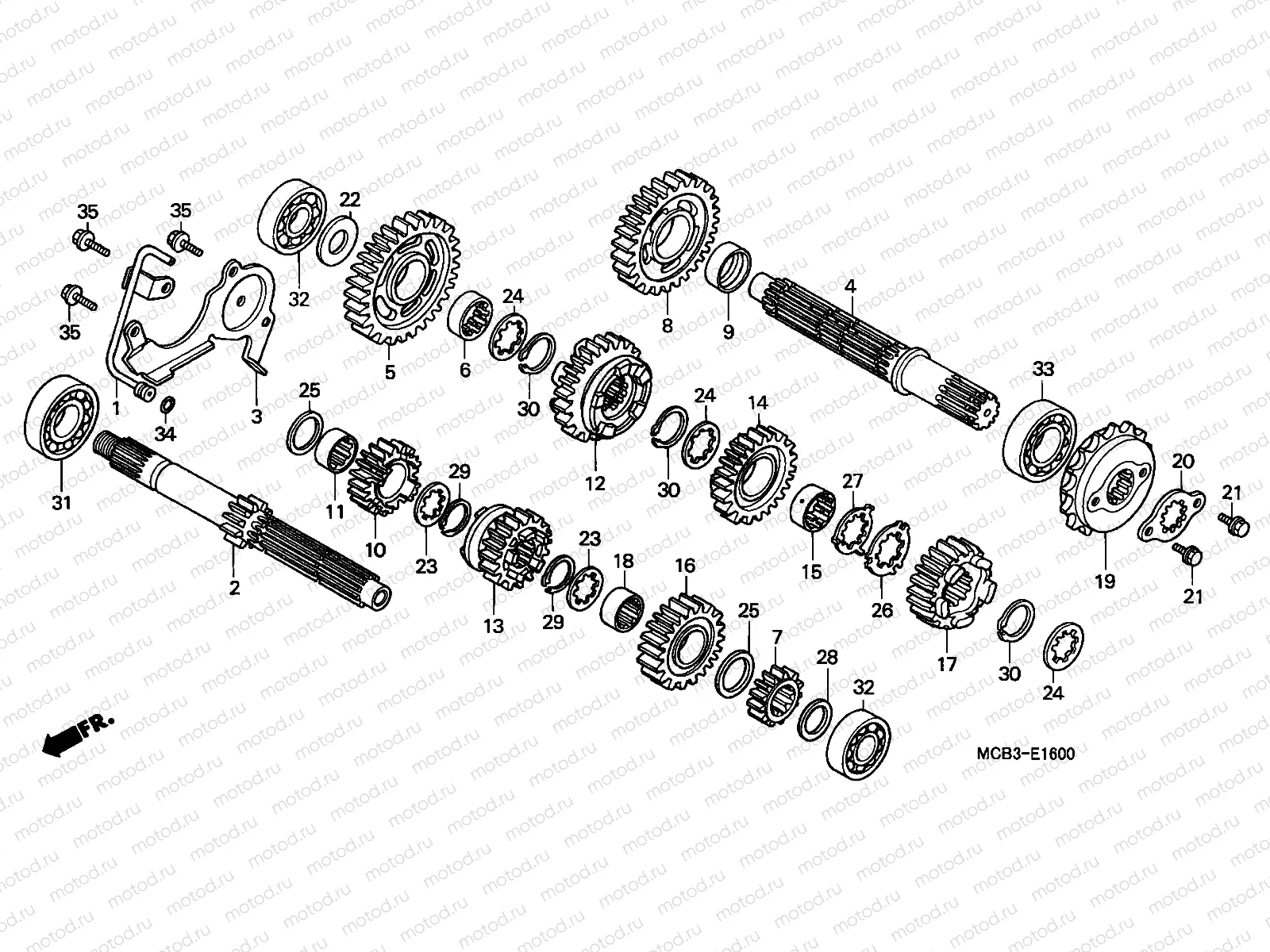

E-16 TRANSMISSION

E-16 TRANSMISSION
Например: 15520-MS6-000
1
15520-MS6-000
PIPE COMP., OIL FEED
1 780 ₽/шт
2
23210-MCB-610
SHAFT COMP., MAIN
3
23212-MS6-920
PLATE, BEARING SETTING
1 294 ₽/шт
4
23220-MCB-610
SHAFT, COUNTER
17 643 ₽/шт
5
23421-MCB-610
GEAR, COUNTERSHAFT FIRST
9 576 ₽/шт
6
23422-MV1-000
COLLAR, SPLINE, 28X10
1 289 ₽/шт
7
23431-MCB-610
GEAR, MAINSHAFT SECOND (1
8
23441-MCB-610
GEAR, COUNTERSHAFT SECOND
9 950 ₽/шт
9
23442-MR5-670
BUSH, 28X31X10
1 557 ₽/шт
10
23451-MCB-610
GEAR, MAINSHAFT THIRD (21
11
23455-MS9-750
BUSH, 25X28X13.5
1 289 ₽/шт
12
23461-MCB-610
GEAR, COUNTERSHAFT THIRD
13
23471-MCB-610
GEAR, MAINSHAFT FOURTH (2
10 548 ₽/шт
14
23481-MCB-610
GEAR, COUNTERSHAFT FOURTH
9 875 ₽/шт
15
23482-MR7-000
COLLAR, SPLINE, 28X13.5
1 575 ₽/шт
16
23491-MCB-610
GEARM-5
8 959 ₽/шт
17
23501-MCB-610
GEAR, COUNTERSHAFT FIFTH
9 682 ₽/шт
18
23512-MR7-000
COLLAR, SPLINE,
1 561 ₽/шт
19
23801-MM9-010
SPROCKET, DRIVE (15T)
5 508 ₽/шт
20
23811-MN8-000
Plate, drive sprocket fixing
796 ₽/шт
21
90118-958-003
Vis
373 ₽/шт
22
90404-KK0-000
WASHER, 20X37X2
305 ₽/шт
23
90451-KY2-000
WASHER, SPLINE, 25X31X1.5
322 ₽/шт
24
90452-MR7-000
WASHER, SPLINE, 28X34X1.5
315 ₽/шт
25
90456-MA6-000
Rondelle (25mm)
330 ₽/шт
26
90463-MR7-000
WASHER, SPLINE, 28MM
613 ₽/шт
27
90464-MR7-000
WASHER, LOCK, 28MM
613 ₽/шт
28
90554-700-000
Rondelle (20 mm)
29
90601-107-000
CIRCLIP, 25MM
297 ₽/шт
30
90603-MN4-000
CIRCLIP, 28MM
275 ₽/шт
31
91002-KY4-901
Roulement
2 352 ₽/шт
32
96140-620-4010
Bearing (6204u)
958 ₽/шт
33
91014-969-003
Roulement
4 943 ₽/шт
34
91318-ME5-003
O-RING, 5.6X1.9 (ARAI)
291 ₽/шт
35
95701-060-1600
БОЛТ С ФЛАНЦЕМ
61 ₽/шт
