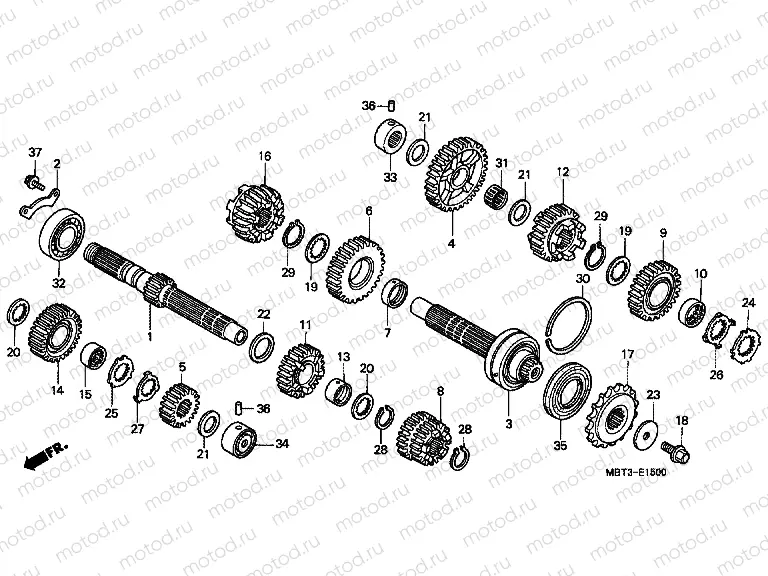

E-15 TRANSMISSION

E-15 TRANSMISSION
Например: 23210-MBT-000
1
23210-MBT-000
SHAFT COMPMAIN
2
23212-MV9-670
PLATE, BEARING SETTING
672 ₽/шт
3
23220-MBT-000
SHAFT COMPCOUNTE
4
23421-MBT-000
GEARC-1
5
23431-MBT-000
GEAR, MAINSHAFT SECOND (1
6
23441-MBT-000
GEAR, COUNTERSHAFT SECOND
7
23442-MS2-610
COLLAR, 30X11.2
1 289 ₽/шт
8
23451-MBT-000
GEARM-3
9
23461-MBT-000
GEARC-3
10
23462-MAT-000
COLLAR, SPLINE, 30X11
1 431 ₽/шт
11
23471-MBT-000
GEARM-4
12
23481-MBT-000
GEARC-4
13
23482-MR7-000
COLLAR, SPLINE, 28X13.5
1 575 ₽/шт
14
23491-MBT-000
GEARM-5
10 399 ₽/шт
15
23495-MM5-000
COLLAR, 28X13
1 453 ₽/шт
16
23501-MBT-000
GEARC-5
17
23801-MAS-000
Pignon avant (16)
6 372 ₽/шт
18
90037-422-003
Vis (spec)
550 ₽/шт
19
90452-MAT-000
WASHER, SPLINE, 30X36X1.5
228 ₽/шт
20
90452-MR7-000
WASHER, SPLINE, 28X34X1.5
315 ₽/шт
21
90455-ML7-000
WASHER B, THRUST, 22MM (B
348 ₽/шт
22
90458-729-920
Rondelle (28mm)
23
90459-438-000
Rondelle (102 mm)
425 ₽/шт
24
90463-MAT-000
WASHER, SPLINE, 30MM
315 ₽/шт
25
90463-MR7-000
WASHER, SPLINE, 28MM
613 ₽/шт
26
90464-MAT-000
WASHER, LOCK, 30MM
425 ₽/шт
27
90464-MR7-000
WASHER, LOCK, 28MM
613 ₽/шт
28
90603-MN4-000
CIRCLIP, 28MM
275 ₽/шт
29
90604-MM5-000
CIRCLIP, 30MM
393 ₽/шт
30
90605-MM5-000
RING, SNAP, 72MM
503 ₽/шт
31
91001-MB6-680
Needle bearing (22x26x13)
1 077 ₽/шт
32
91004-MBT-003
Roulement
1 763 ₽/шт
33
91022-MCF-003
Needle bearing (22x38x16)
1 806 ₽/шт
34
91025-MCF-003
Needle bearing (22x38x19,3)
3 680 ₽/шт
35
91207-MBB-013
Joint (39X72X8)
36
94302-08100
PIN B, DOWEL, 8X10
104 ₽/шт
37
95701-060-1400
Bolt
55 ₽/шт
