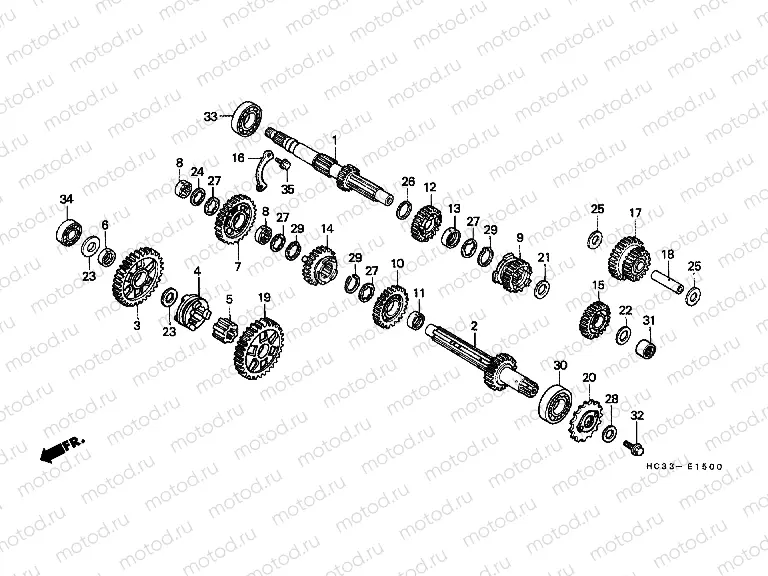

E-15 TRANSMISSION

E-15 TRANSMISSION
Например: 23210-HC3-000
1
23210-HC3-000
SHAFT COMP MAIN.
2
23220-HB6-000
COUNTSHAFT COMP
3
23411-HB6-670
GEARCOUNTERSHAFT
4
23412-HB6-010
SHIFTER RVS S.L G
5
23413-HB6-010
TÁVTARTÓ, BORDÁS
6
23414-HB6-000
USHCOUNT/SF GR
7
23431-HB6-670
GEARCOUNTERSHAFT
8
23432-HB6-000
COUNT/SF 2 GEAR
9
23441-HB6-672
GEARM-3RD
10
23451-HB6-010
GEARCOUNTERSHAFT
11
23452-HC3-000
BUSH 20X8
12
23461-HC3-010
GEAR M-4
13
23462-HC3-000
BUSH 20X10.5
14
23471-HB6-671
GEARC-4
15
23481-HB6-010
GEARM-5
16
23521-HB6-000
PLATEBRG.SET
17
23721-HB6-000
No longer available
18
23731-HC3-000
Tengely, hátrameneti üresjárat
19
23751-HB6-010
No longer available
20
23800-HB6-000
SPROCKETCOMP.DRI
21
90401-HB6-000
Rondelle (15mm)
22
90402-HB6-000
Rondelle (15x29)
23
90412-187-000
WASHER, THRUST, 15MM
291 ₽/шт
24
90421-HB6-000
ALÁTÉT, RÖGZÍTŐ 20MM
25
90451-HB3-000
Rondelle (13x27x1)
26
90454-107-000
Rondelle (20 mm)
228 ₽/шт
27
90461-444-000
WASHER, SPLINE, 20MM
385 ₽/шт
28
90465-MC4-000
Rondelle (8 mm)
275 ₽/шт
29
90601-459-000
CIRCLIP, 20MM
330 ₽/шт
30
91004-KW3-004
BEARING, BALL, 62/22 (KOY
1 400 ₽/шт
31
91106-383-003
Needle bearing (15mm)
1 352 ₽/шт
32
95701-080-1600
Bolt, flange, 8x16
66 ₽/шт
33
96100-600-4000
ПОДШИПНИК ПЕРЕДНЕЙ СТУПИЦЫ
708 ₽/шт
34
96100-620-2000
ПОДШИПНИК ВЫЖИМНОЙ
519 ₽/шт
35
96300-060-1400
Болт
66 ₽/шт
