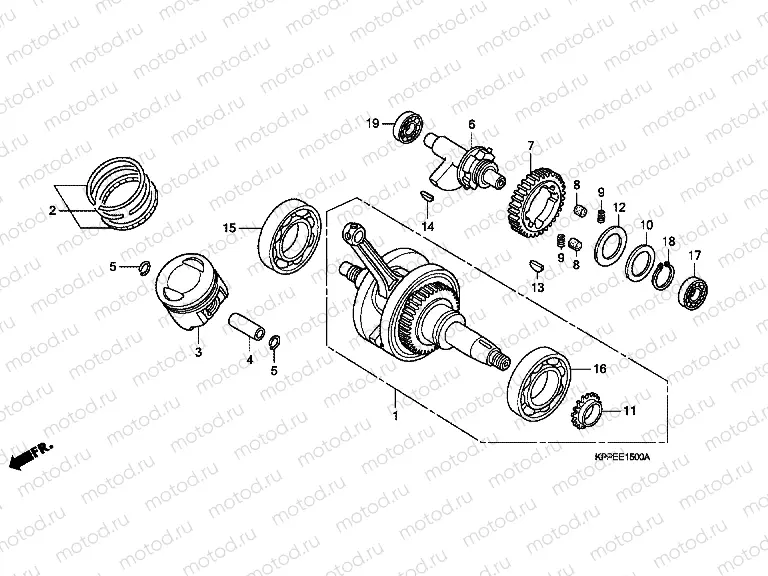

E-15 CRANKSHAFT / PISTON

E-15 CRANKSHAFT / PISTON
Например: 13000-KPP-860
1
13000-KPP-860
Vilebrequin
45 229 ₽/шт
2
13015-KGH-305
RING SET, PISTON (1.00) (std. 1.00)
3
13105-KGH-325
Piston (std. 1.00)
4
13111-KGH-903
Piston pin
5
13115-GN5-910
Snap ring - piston pin (13 mm)
181 ₽/шт
6
13420-KTY-H50
WEIGHT COMP., BALANCER
7
13424-KPP-860
GEAR C, BALANCER DRIVEN (
4 523 ₽/шт
8
13425-KGH-901
RUBBER, BALANCER DUMPER (
9
13427-KPP-860
SPRING, BALANCER GEAR
566 ₽/шт
10
13538-KGH-900
SPRING, THRUST
409 ₽/шт
11
14311-KGH-900
SPROCKET, TIMING (17T)
12
90401-KPP-900
WASHER, 28.2X45X1.0
13
90741-KFB-000
EY, WOODRUFF, 4MM
305 ₽/шт
14
90741-KGH-900
EY, WOODRUFF, 4MM
291 ₽/шт
15
91001-KGH-901
Roulement
2 037 ₽/шт
16
91002-KPP-901
BEARING, L. RADIAL BALL
2 037 ₽/шт
17
91003-KPP-861
Roulement
18
94510-28000
CIRCLIP, EXTERNAL, 28MM
86 ₽/шт
19
96100-630-1000
Bearing, radial ball, 6301
613 ₽/шт
