Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA CB 125 F HONDA CB125F (CBF125MM) 2021 HONDA (VIN: ZDCJC84A) E-15 CRANKCASE

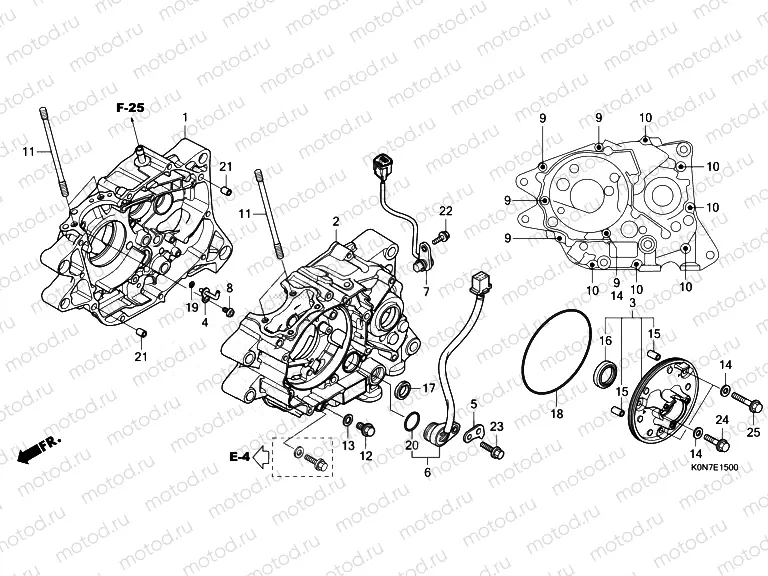

E-15 CRANKCASE

E-15 CRANKCASE
Например: 11100-K0N-D00
1
11100-K0N-D00
CRANKCASE COMP., R.
2
11200-K0N-D00
CRANKCASE COMP., L.
3
11320-K0N-D00
BASE ASSY., STATOR
4
15201-K0N-D01
JET COMP., PISTON
4
-
5
-
6
35759-K0N-D01
CONTACT ASSY., CHANGE SWI
7
37700-K0N-D01
SENSOR ASSY., SPEED
8
90003-K0J-N00
BOLT, SPECIAL, 6X12
9
90005-K0N-E00
BOLT, FLANGE, 6X75
10
90010-KWF-940
Vis
320 ₽/шт
11
90031-K0J-N00
Stud bolt
12
90031-K0N-E00
BOLT, DRAIN PLUG, 12MM
13
90401-KWP-F00
ASHER, DRAIN PLUG, 12MM
14
90488-425-000
Rondelle
297 ₽/шт
15
90702-KRM-840
Dowel pin (8x14)
346 ₽/шт
16
91201-K0N-D01
OIL SEAL, 22.3X32X6 (ARAI
17
91202-K0V-A01
OIL SEAL 12X22X5
17
91202-K0N-D01
OIL SEAL, 12X22X5 (ARAI)
18
91301-035-003
O-RING, 107X2 (ARAI)
487 ₽/шт
19
91305-K0J-N00
O-RING, 3.8X1.4
20
91305-K0N-D00
O-RING, 19.4X2.3
21
94301-08200
Dowel pin (8x20)
94 ₽/шт
22
95701-060-1808
БОЛТ 6X18
55 ₽/шт
23
95701-060-2208
Bolt
69 ₽/шт
24
96001-060-2200
БОЛТ КРЕПЛЕНИЯ ЦЕПИ ГРМ
79 ₽/шт
25
96001-060-3000
Болт
86 ₽/шт
