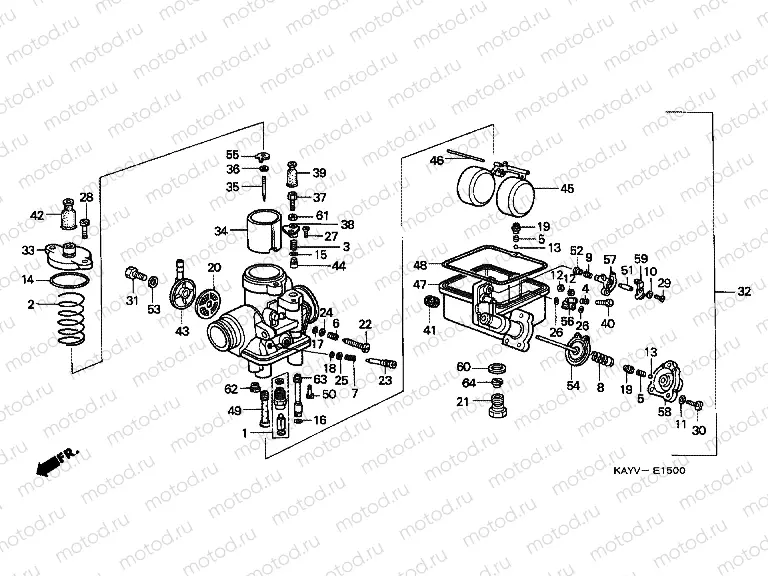

E-15 CARBURETOR

E-15 CARBURETOR
Например: 16011-KB1-921
1
16011-KB1-921
VALVE SETFLOAT
2
16050-KAY-600
SPRING COIL
3
16051-KB1-921
SPRING, COMPRESSION COIL
4
16052-KB1-921
COIL SPRINGCOMPR
5
16053-KB1-921
COIL SPRINGCOMPR
6
16054-KB1-921
SPGCOIL COMPRESS
7
16057-KB1-921
SPRING, COMPRESSION COIL
8
16058-KB1-921
COIL SPRINGCOMPR
9
16059-KB1-921
SPRING COIL
10
16061-KB1-921
WASHERSPRING5MM
11
16062-KB1-921
Rondelle (4 mm)
12
16063-KB1-921
Nut (3 mm)
13
16071-KB1-921
ALLSTEEL
14
16075-KB1-921
O-Ring
15
16076-KB1-921
O-Ring
329 ₽/шт
16
16077-KB1-921
O-Ring
262 ₽/шт
17
16078-KB1-921
O-Ring
18
16075-GCG-930
O-Ring
458 ₽/шт
19
16080-KB1-921
COIL SPRINGCOMPR
20
16081-KB1-921
SCREEN
834 ₽/шт
21
16082-KB1-921
OLT, HOLDING
1 556 ₽/шт
22
16083-KB1-921
SCREWADJUST
23
16084-KB1-921
SCREWADJUST
24
16085-KB1-921
Rondelle (5 mm)
25
16085-GCG-930
Rondelle (3 mm)
26
16092-KB1-921
O-Ring
27
16094-KB1-921
Vis (4x14)
262 ₽/шт
28
16096-KR1-760
Vis
262 ₽/шт
29
16097-KB1-921
OLTHEX5X35
30
16098-KB1-921
SCREW4X10
31
16099-KB1-921
OLTHEX6X14
32
16100-KAY-600
Carburettor
33
16107-KB1-921
COVER
34
16111-KB1-921
VALVETHROTTLE
35
16113-KG1-920
NEEDLE JET
36
16114-KB1-921
CLIP, JET NEEDLE
259 ₽/шт
37
16116-KB1-921
ADJUSTERCABLE
38
16117-KB1-921
HOLDERCABLE
1 114 ₽/шт
39
16118-KB1-921
CAP, CABLE SEALING
689 ₽/шт
40
16132-KB1-921
FOLLOWER
41
16146-KB1-921
COIL SPRINGCOMPR
42
16148-KB1-921
CAP, CABLE SEALING
739 ₽/шт
43
16149-KB1-921
ADAPTER
44
16150-KB1-921
VALVE, BY-STARTER
45
16151-KR1-762
FLOAT
3 022 ₽/шт
46
16153-KB1-921
PIN, FLOAT ARM
451 ₽/шт
47
16158-KB1-921
CHAMBER COMP., FLOAT
48
16163-KB1-921
Gasket - float chamber
49
16164-KB9-920
NEEDLEJET
50
16166-KB1-921
NOZZLEPUMP
51
16172-KB1-921
Entretoise
52
16173-KB1-921
Entretoise
53
16175-KB1-921
Gasket
262 ₽/шт
54
16181-KB1-921
DIAPHRAM COMP. ** NLA**
55
16184-KB1-921
PLATEVALVE
56
16185-KB1-921
ARM APUMP
57
16186-KB1-921
ARM BPUMP
58
16187-KB1-921
COVER COMP.PUMP
59
16192-KB1-921
STAYPLATE
60
16194-KB1-921
Gasket
271 ₽/шт
61
16198-KB1-921
Nut (6 mm)
689 ₽/шт
62
91906-KG1-920
Idle jet (35)
63
91907-KB1-921
JET,BYSTARTER
3 097 ₽/шт
64
91905-KG1-920
Jet principal (102)
