Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA XR 125 L HONDA XR125L7 XR125L 2007 HONDA (VIN: 9C2JD19A) E-14 TRANSMISSION

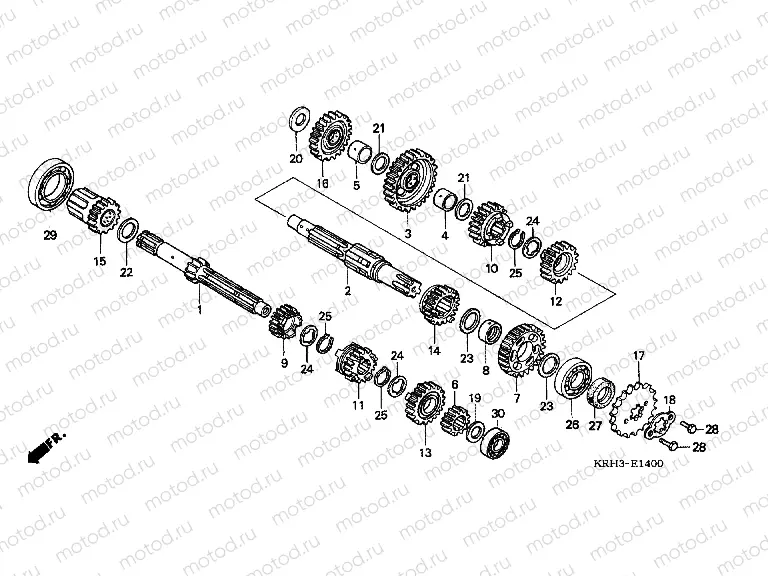

E-14 TRANSMISSION

E-14 TRANSMISSION
Например: 23210-KGA-900
1
23210-KGA-900
MAINSHAFT COMP., TRANSMIS
2
23221-KPT-900
COUNTERSHAFT, TRANSMISSIO
3
23426-KCS-650
GEAR, COUNTERSHAFT LOW (3
5 849 ₽/шт
4
23427-KPS-900
COLLAR, COUNTERSHAFT FIRS
5
23431-KPT-900
COLLAR, IDLE STARTER GEAR
6
23441-439-000
GEARM.SECOND
3 246 ₽/шт
7
23451-KW1-900
GEAR C-2
5 013 ₽/шт
8
23452-KW1-900
BUSH, 20X23X9
1 384 ₽/шт
9
23461-439-000
GEAR, MAINSHAFT THIRD (20
4 145 ₽/шт
10
23471-439-000
GEAR, COUNTERSHAFT THIRD
6 228 ₽/шт
11
23481-439-000
GEAR, MAINSHAFT FOURTH (2
5 954 ₽/шт
12
23491-KN6-930
GEARC-4
5 207 ₽/шт
13
23501-KN6-930
GEAR, MAINSHAFT FIFTH (25
4 669 ₽/шт
14
23511-439-010
GEARCT/SHAFT 24T
6 657 ₽/шт
15
23520-KPT-900
GEAR COMPSTARTER
16
23531-KPT-900
GEAR ONLYIDLEST
17
23801-KCM-000
SPROCKET, DRIVE (17T)
4 725 ₽/шт
18
23811-KR3-600
Plate, drive sprocket fixing
330 ₽/шт
19
90451-KPS-900
Rondelle (15mm)
20
90451-365-000
Rondelle (15mm)
291 ₽/шт
21
90452-KPT-900
Rondelle (16,5mm)
22
90453-KPT-900
WASHERTHRUST 20M
23
90454-107-000
Rondelle (20 mm)
228 ₽/шт
24
90455-KPS-900
WASHER A, SPLINE, 20MM
25
94510-20000
CIRCLIP, EXTERNAL, 20MM
58 ₽/шт
26
91016-KPS-900
Roulement
27
91201-030-033
Joint
414 ₽/шт
28
92101-060-100A
Bolt, hex., 6x10
47 ₽/шт
29
96100-600-6000
Bearing, radial ball, 6006
975 ₽/шт
30
96120-620-2000
B/brg rad n/com
645 ₽/шт
