Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA NES @ 150 HONDA NES1502 @150 2002 HONDA (VIN: ZDCKF03A) E-13 DRIVED PAGE

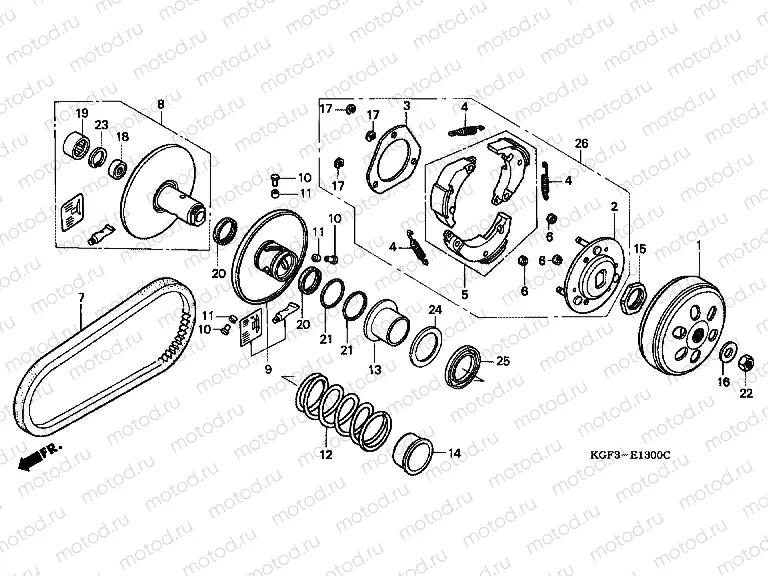

E-13 DRIVED PAGE

E-13 DRIVED PAGE
Например: 22101-KCW-850
1
22101-KCW-850
OUTER, CLUTCH
7 138 ₽/шт
2
22350-KGF-911
PLATE COMP., DRIVE
3
22361-KGF-910
PLATE, CLUTCH SIDE
1 327 ₽/шт
4
22401-KGG-910
Clutch spring
346 ₽/шт
5
22535-KGF-910
WEIGHT SET, CLUTCH
6 763 ₽/шт
6
22804-GB2-000
RUBBER, CLUTCH DAMPER
407 ₽/шт
7
23100-KGG-911
Courroie
8
23205-KGF-911
ACE SET, DRIVEN
11 199 ₽/шт
9
23224-KGG-911
Variateur
10
23225-GC8-003
PIN, ROLLER GUIDE
283 ₽/шт
11
23226-GC8-003
ROLLER, GUIDE
220 ₽/шт
12
23233-KGF-911
Spring
13
23237-KGF-910
COLLAR, SEAL
884 ₽/шт
14
23238-KGF-910
COLLAR, SPRING
916 ₽/шт
15
90202-187-000
Nut (spec. 28mm)
550 ₽/шт
16
90441-GY6-940
WASHER, 12.2X29X2.5 (12,2x29x2,5)
385 ₽/шт
17
90605-166-720
CIRCLIP, 7MM
204 ₽/шт
18
91002-GA7-701
Roulement
1 074 ₽/шт
19
91002-KFG-003
Needle bearing
1 101 ₽/шт
20
91211-KN7-671
SEAL, DRIVEN FACE, 34X41X
535 ₽/шт
21
91384-SF1-J61
O-Ring
254 ₽/шт
22
94030-12200
Nut (12 mm)
63 ₽/шт
23
94520-28000
Seeger (28mm)
86 ₽/шт
24
22109-KGF-910
SEAT, DRIVEN SPRING
338 ₽/шт
25
23239-KGF-911
CAP, SPRING
689 ₽/шт
