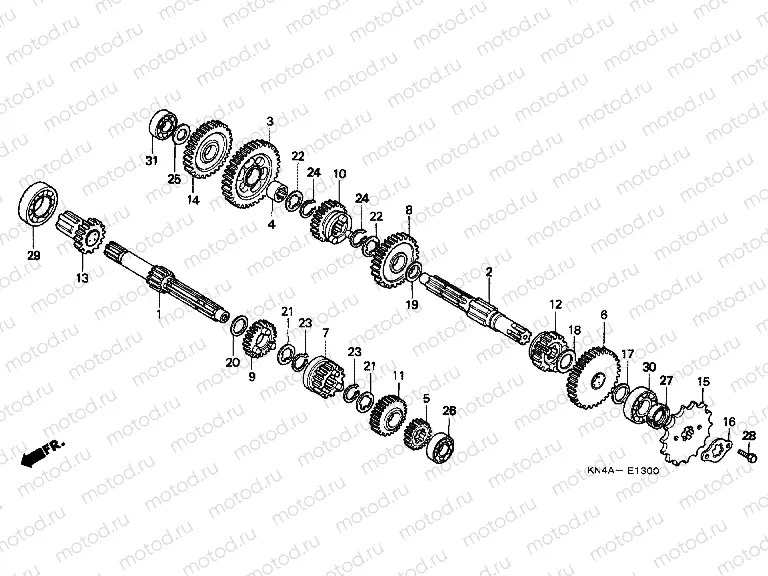

E-13-1 TRANSMISSION (CRF100F)

E-13-1 TRANSMISSION (CRF100F)
Например: 23211-KN4-A60
1
23211-KN4-A60
SHAFTMAIN TRANSM
8 526 ₽/шт
2
23221-436-000
COUNTERSHAFT, TRANSMISSIO
8 453 ₽/шт
3
23426-436-000
GEAR, COUNTERSHAFT LOW (3
4 884 ₽/шт
4
23427-436-000
COLLAR, COUNTERSHAFT LOW
1 478 ₽/шт
5
23441-115-010
GEAR, MAINSHAFT SECOND (1
2 847 ₽/шт
6
23450-436-000
GEAR COMP., COUNTERSHAFT
5 650 ₽/шт
7
23461-115-010
GEAR, MAINSHAFT THIRD (20
4 292 ₽/шт
8
23471-436-000
GEAR, COUNTERSHAFT THIRD
4 797 ₽/шт
9
23481-115-000
GEAR, MAINSHAFT FOURTH (2
3 511 ₽/шт
10
23491-436-000
GEAR, COUNTERSHAFT FOURTH
6 127 ₽/шт
11
23501-436-010
GEAR M SHAFT TOP
3 425 ₽/шт
12
23511-115-010
GEAR C SHAFT TOP
4 003 ₽/шт
13
23520-436-000
GEAR COMP., PRIMARY START
5 072 ₽/шт
14
23531-436-000
GEAR, IDLE STARTER (29T)
3 728 ₽/шт
15
23800-168-000
SPROCKET, DRIVE (14T)
5 068 ₽/шт
16
23802-040-000
PLATE, DRIVE SPROCKET FIX
228 ₽/шт
17
90446-357-000
Rondelle (17,2mm)
546 ₽/шт
18
90451-436-000
Rondelle (19,5mm)
346 ₽/шт
19
90452-436-000
Rondelle (18mm)
346 ₽/шт
20
90453-115-000
WASHER B, THRUST, 17MM
283 ₽/шт
21
90461-115-000
WASHER, SPLINE, 17MM
291 ₽/шт
22
90461-436-000
WASHER, SPLINE, 18MM
346 ₽/шт
23
90601-001-000
Seeger
204 ₽/шт
24
90601-030-000
CIRCLIP, 18MM
236 ₽/шт
25
90608-072-000
Rondelle (12 mm)
528 ₽/шт
26
96140-620-1000
ПОДШИПНИК
613 ₽/шт
27
91203-035-005
Joint
550 ₽/шт
28
92101-060-100A
Bolt, hex., 6x10
47 ₽/шт
29
96100-600-5000
Bearing, radial ball, 6005
810 ₽/шт
30
96100-620-3000
Bearing, radial ball, 6203
645 ₽/шт
31
96140-620-1000
ПОДШИПНИК
613 ₽/шт
