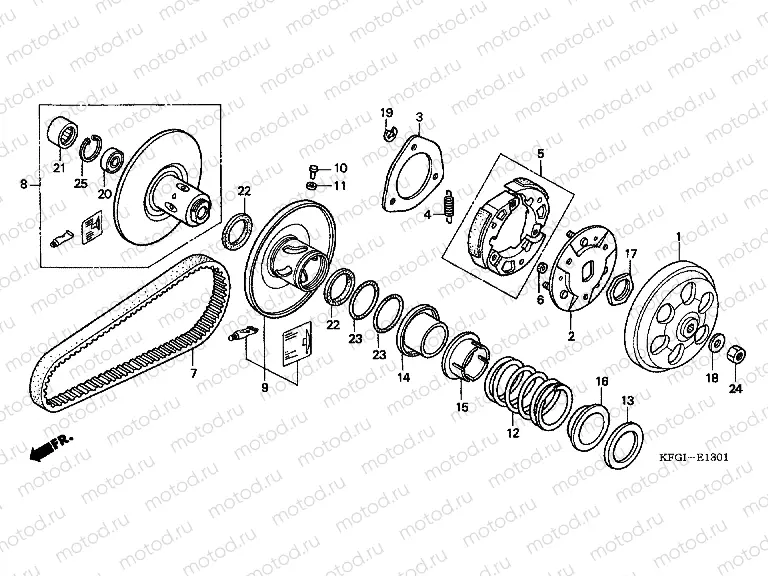

E-13-1 DRIVE SIDE (FES2505)

E-13-1 DRIVE SIDE (FES2505)
Например: 22100-KSV-J10
1
22100-KSV-J10
OUTER COMP., CLUTCH
8 887 ₽/шт
2
22350-KFG-000
PLATE COMP., DRIVE
3 613 ₽/шт
3
22361-KFG-000
PLATE, CLUTCH SIDE
1 195 ₽/шт
4
22401-KFG-000
Clutch spring
396 ₽/шт
5
22535-KFG-000
WEIGHT SET, CLUTCH
7 663 ₽/шт
6
22804-GB2-000
RUBBER, CLUTCH DAMPER
407 ₽/шт
7
23100-KTB-003
Courroie
14 869 ₽/шт
8
23205-KPB-000
FACE SETDRIVEN
16 697 ₽/шт
9
23224-KFG-640
Variateur
6 864 ₽/шт
10
23225-KM1-010
PIN, ROLLER GUIDE
244 ₽/шт
11
23226-KM1-010
ROLLER, GUIDE
212 ₽/шт
12
23233-KTB-000
Spring
2 246 ₽/шт
13
23236-KSV-J10
EAT, DRIVEN FACE SPRING
535 ₽/шт
14
23237-KSV-J10
COLLAR, SEAL
1 415 ₽/шт
15
23238-KSV-J10
COLLAR A, SPRING GUIDE
1 647 ₽/шт
16
23239-KSV-J10
COLLAR B, SPRING GUIDE
739 ₽/шт
17
90202-KM1-000
Nut (spec. 30mm)
425 ₽/шт
18
90473-KG8-000
Rondelle (12 mm)
283 ₽/шт
19
90605-166-720
CIRCLIP, 7MM
204 ₽/шт
20
91002-GA7-701
Roulement
1 074 ₽/шт
21
91002-KPB-003
Needle bearing (25x33x18)
1 488 ₽/шт
22
91211-KM1-005
SEAL, DRIVEN FACE, 40X47X
708 ₽/шт
23
91352-KM1-005
O-Ring
289 ₽/шт
24
94030-12200
Nut (12 mm)
63 ₽/шт
25
94520-28000
Seeger (28mm)
86 ₽/шт
