Главная Каталог товаров HONDA EPC < 124 cm³ HONDA Super Cub 90 HONDA C90ZN C90 1992 HONDA E-10 TRANSMISSION

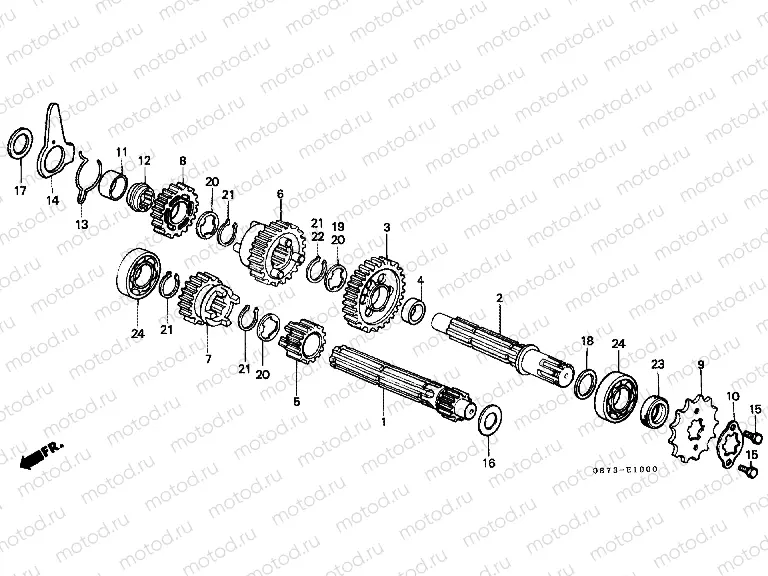

E-10 TRANSMISSION

E-10 TRANSMISSION
Например: 23211-178-000
1
23211-178-000
M/SHAFTTRANS
2
23221-178-010
CT/SHAFTTRANS
3
23421-178-000
GEARC-1
5
23431-GB1-900
EARM/SHAFT 2ND.
4 130 ₽/шт
6
23441-178-010
GEARC-2ND(28T)
7
23471-GB1-901
EARMAINSHAFT TH
3 246 ₽/шт
8
23481-GB1-901
EARCOUNTERSHAFT
9
23801-178-000
SPROCKET, DRIVE (14T)
1 633 ₽/шт
10
23802-040-000
PLATE, DRIVE SPROCKET FIX
228 ₽/шт
11
23911-GB1-900
COLLARLOCK PLATE
13
24305-GT0-000
SPGCHNG FRICTION
14
24306-GB4-770
PLDRUMLOCK
912 ₽/шт
15
90084-041-000
Vis
256 ₽/шт
16
90451-121-000
Rondelle (14mm)
189 ₽/шт
17
90451-141-000
WASHER, THRUST, 13.5MM
267 ₽/шт
18
90452-178-000
Rondelle (17mm)
259 ₽/шт
19
90455-KR1-760
WASHER,SPLINE 20M
228 ₽/шт
20
90461-035-000
WASHER, SPLINE, 17MM
291 ₽/шт
21
90601-001-000
Seeger
204 ₽/шт
22
90605-200-000
SET RING, 20MM
283 ₽/шт
23
91203-GBG-900
Joint
535 ₽/шт
24
96100-620-3000
Bearing, radial ball, 6203
645 ₽/шт
