Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA CRM 125 R HONDA CRM125RV CRM125R 1997 HONDA (VIN: ZDCJD10A, ZDCJD13A) E-10 TRANSMISSION

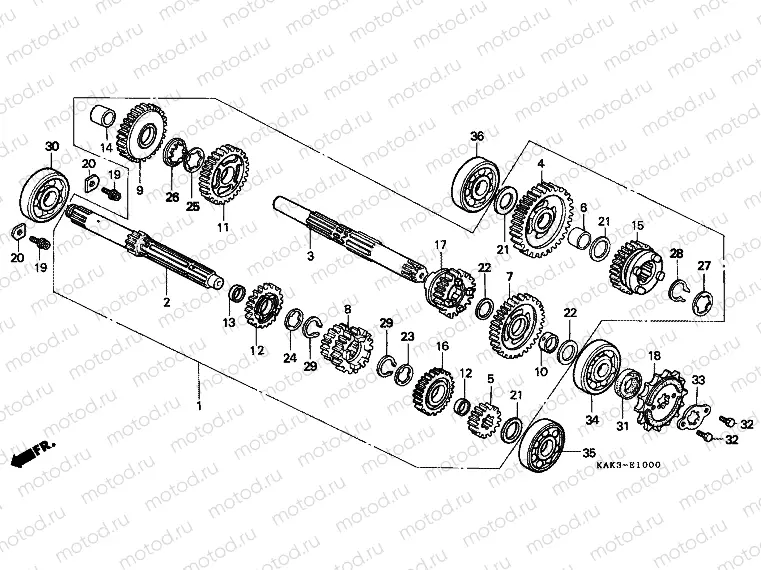

E-10 TRANSMISSION

E-10 TRANSMISSION
Например: 23100-KAK-900
1
23100-KAK-900
MISSION ASSEMBLY* NLA*
2
23210-KY4-900
SHAFT COMP.MAIN
3
23221-KY4-901
COUNTERSHAFT
4
23411-KAK-900
GEAR, COUNTERSHAFT LOW (3
5
23421-KAK-900
GEAR, MAINSHAFT SECOND (1
6
23425-KS3-900
BUSH, 17MM
1 180 ₽/шт
7
23431-KAK-900
GEAR, COUNTERSHAFT SECOND
8
23441-KAK-900
GEAR, MAINSHAFT THIRD & F
9
23451-KAK-900
GEAR, COUNTERSHAFT THIRD
10
23455-KR1-760
BUSH, 20MM
1 474 ₽/шт
11
23461-KAK-900
GEAR, COUNTERSHAFT FOURTH
12
23471-KAK-900
GEAR, MAINSHAFT FIFTH (23
13
23472-KY4-900
COLLAR, 20X22X10
1 315 ₽/шт
14
23475-KE1-010
BUSH, 22MM
1 360 ₽/шт
15
23481-KAK-900
GEAR, COUNTERSHAFT FIFTH
16
23491-KAK-900
GEAR, MAINSHAFT SIXTH (24
17
23501-KAK-900
GEAR, COUNTERSHAFT SIXTH
18
23801-KGB-900
SPROCKET, DRIVE (14T)
4 971 ₽/шт
19
90071-MF5-000
Vis
287 ₽/шт
20
90441-KY4-900
PLATEBRG HOLD
205 ₽/шт
21
90452-115-000
Rondelle (17 mm)
236 ₽/шт
22
90454-107-000
Rondelle (20 mm)
228 ₽/шт
23
90455-KAK-900
WASHERSPLINE20M
24
90455-KR1-760
WASHER,SPLINE 20M
228 ₽/шт
25
90464-444-000
WASHER, SPLINE, 22MM
385 ₽/шт
26
90465-KE1-010
Rondelle
487 ₽/шт
27
90466-KR1-760
WASHER,SPLINE 22M
28
90601-KE1-000
CIR CLIP,22MM
385 ₽/шт
29
90605-200-000
SET RING, 20MM
283 ₽/шт
30
91003-KJ1-003
BRG,RADIAL BALL
1 400 ₽/шт
31
91201-030-033
Joint
414 ₽/шт
32
92101-060-100A
Bolt, hex., 6x10
47 ₽/шт
33
95014-92100
Plate, drive sprocket fixing
86 ₽/шт
34
96100-620-4000
ПОДШИПНИК ВЫЖИМНОЙ
708 ₽/шт
35
96140-600-3000
ПОДШИПНИК
917 ₽/шт
36
96140-620-3000
ПОДШИПНИК
810 ₽/шт
