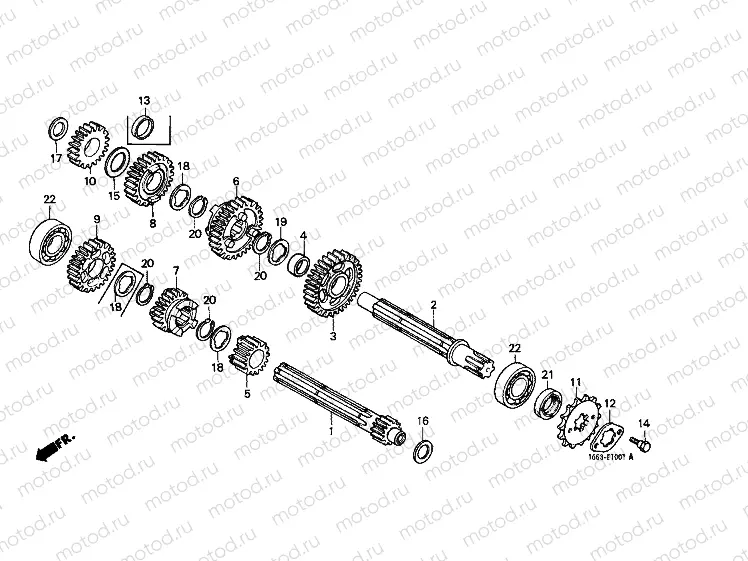

E-10-1 TRANSMISSION (2)

E-10-1 TRANSMISSION (2)
Например: 23211-098-910
1
23211-098-910
SHAFT MAIN TRANS
2
23221-065-020
COUNTERSHAFT, TRANSMISSIO
5 072 ₽/шт
3
23421-098-911
GEARC.LOW
5
23431-041-040
GEAR M 2ND** NLA**
6
23441-065-020
GEAR CT/SHAFT 2ND
7
23451-065-000
GEAR M THIRD *** NLA***
8
23461-065-000
GEAR C THIRD *** NLA***
9
23471-065-010
GEAR M TOP
10
23481-065-010
GEAR C TOP
11
23800-045-671
SPROCKET, DRIVE (12T)
1 734 ₽/шт
12
23802-045-670
PLATE, DRIVE SPROCKET FIX
244 ₽/шт
13
23911-065-000
COLLAR GEAR
14
90084-041-000
Vis
256 ₽/шт
16
90451-121-000
Rondelle (14mm)
189 ₽/шт
17
90451-141-000
WASHER, THRUST, 13.5MM
267 ₽/шт
18
90461-035-000
WASHER, SPLINE, 17MM
291 ₽/шт
19
90461-035-000
WASHER, SPLINE, 17MM
291 ₽/шт
20
90601-001-000
Seeger
204 ₽/шт
21
91203-035-005
Joint
550 ₽/шт
22
96100-620-3000
Bearing, radial ball, 6203
645 ₽/шт
