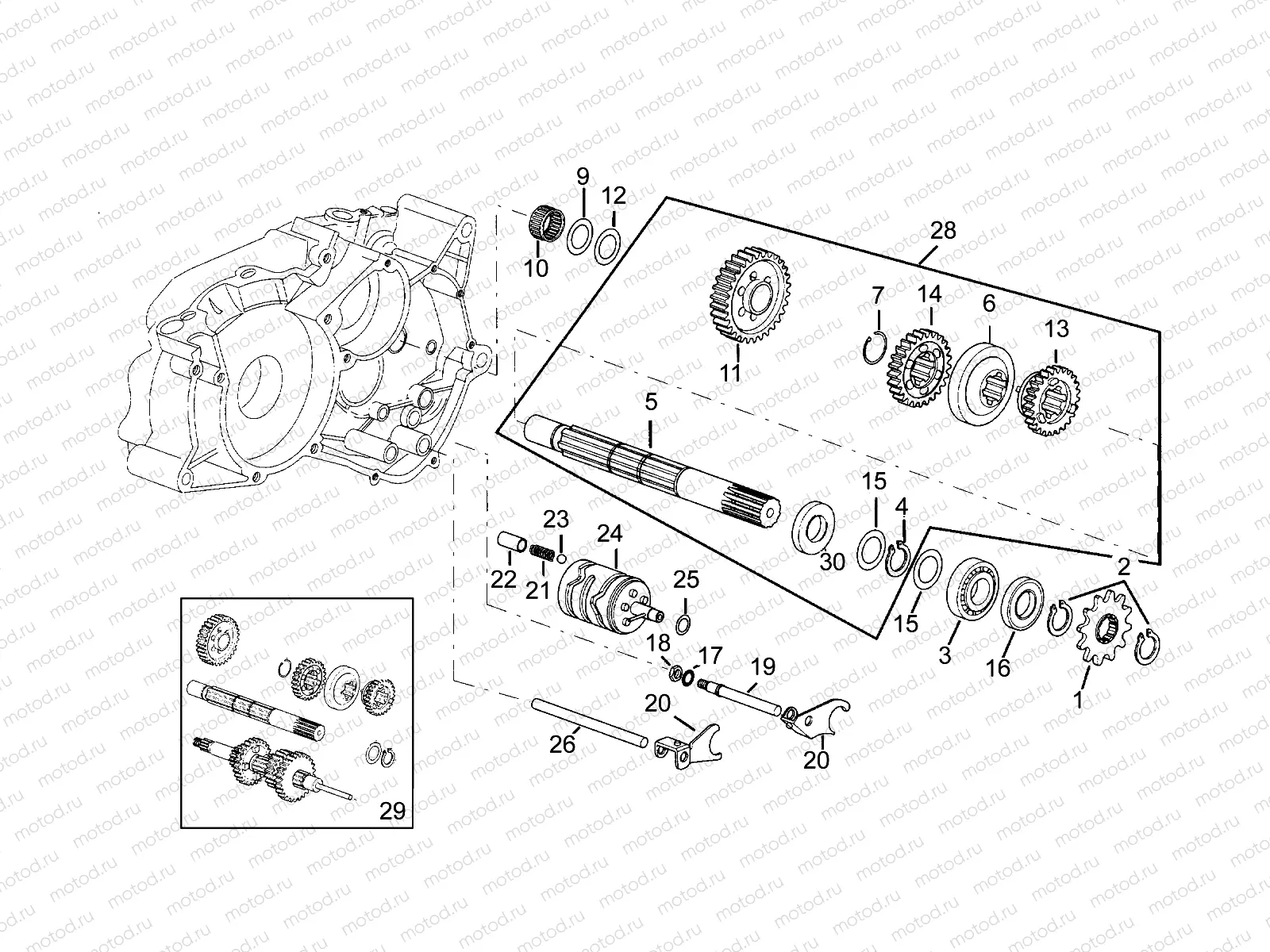

Driven shaft

Driven shaft
Например: AP8206314
1
AP8206314
Intermediate gear Z=14
1
AP8206376
Intermediate gear Z=12
1
AP8206313
Intermediate gear Z=11
1
AP8206355
Intermediate gear Z=13
3
AP8276046
Roulement
4
AP8501484
Outside circlip D17
5
AP8206318
Driven shaft
6
AP8206330
Sliding coupling 3-4 spd.
7
AP8501471
Seeger
9
AP8206347
Blue steel washer D13x25
10
AP8206536
Gear bush 13x20x13,5
11
AP8206324
1st wheel gear Z=37
12
AP8502500
Blue steel washer D18x30
13
AP8206372
Gear 3 v.ta' Z=26
13
AP8206326
Gear 3 v.ta' Z=26
14
AP8206371
Gear 2 v.ta' Z=31
14
AP8206325
Gear 2 v.ta' Z=31
15
AP8502498
Rondelle
16
AP8206291
Joint
17
AP8502473
Rondelle
18
AP8502414
Nut
19
AP8206298
Fork guide pin
20
AP8206246
Fork 3-4 speed
21
AP8206261
pc - Gear indicator spring
22
AP8206336
in retainer
23
AP8206283
Ball
24
AP8206352
Shift cam
25
AP8206269
Rondelle
26
AP8502826
Fork guide pin
28
AP8206312
Secondary shaft cpl.
28
AP8206351
Secondary shaft cpl.
29
AP8206254
Gear box assy 3 v.tà
29
AP8206373
Gear box assy
30
AP8206333
Bush
