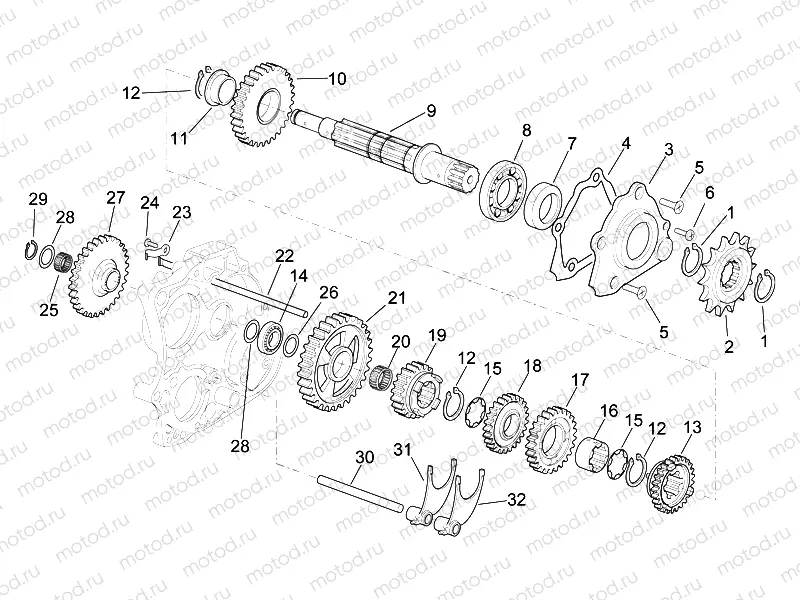

Driven shaft

Driven shaft
1
AP8600326
Snap ring
2
AP8600325
inion Z=14
3
AP8600318
Lock bearing plate
4
AP8600319
Stop plate gasket
5
AP8600320
screw M6x16
6
AP8600321
screw M6x16
7
AP8600313
Joint
8
AP8600312
Bearing 25x62x17
9
AP8600298
Driven shaft
10
AP8600300
2nd wheel gear
11
AP8600307
Bush
12
AP8600309
Seeger
13
AP8600405
th wheel gear
14
AP8600311
Roulement
15
AP8600310
Rondelle
16
AP8600308
Gear bush 3/4
17
AP8600301
rd wheel gear
18
AP8600302
4th wheel gear
19
AP8600303
5th wheel gear
20
AP8600306
Bearing 18x22x12.8
21
AP8600299
1st wheel gear
22
AP8600314
Gearbox oil pipe
23
AP8600315
Oil pipe lock plate
24
AP8600316
Vis
25
AP8600327
Bearing 15x19x13
26
AP8600305
Rondelle
27
AP8600322
Trans.starter gear
28
AP8600323
Clearance washer
29
AP8600324
Snap ring
30
AP8600330
Fork shaft
31
AP8600328
Fork n1
32
AP8600404
Fork n2

Узлы для RS 250 2T APRILIA RS 250 (VIN: ZD4LD0)
