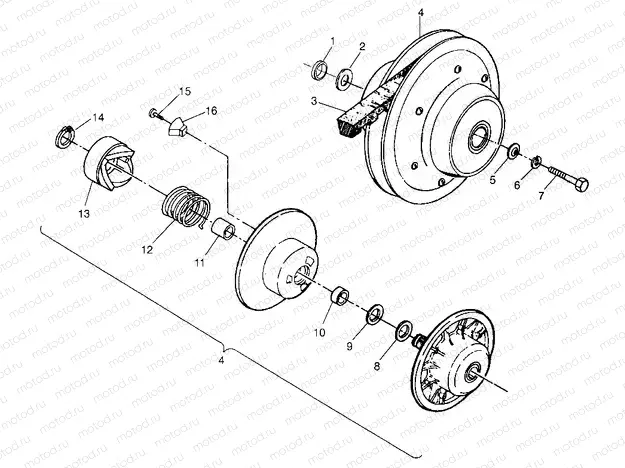

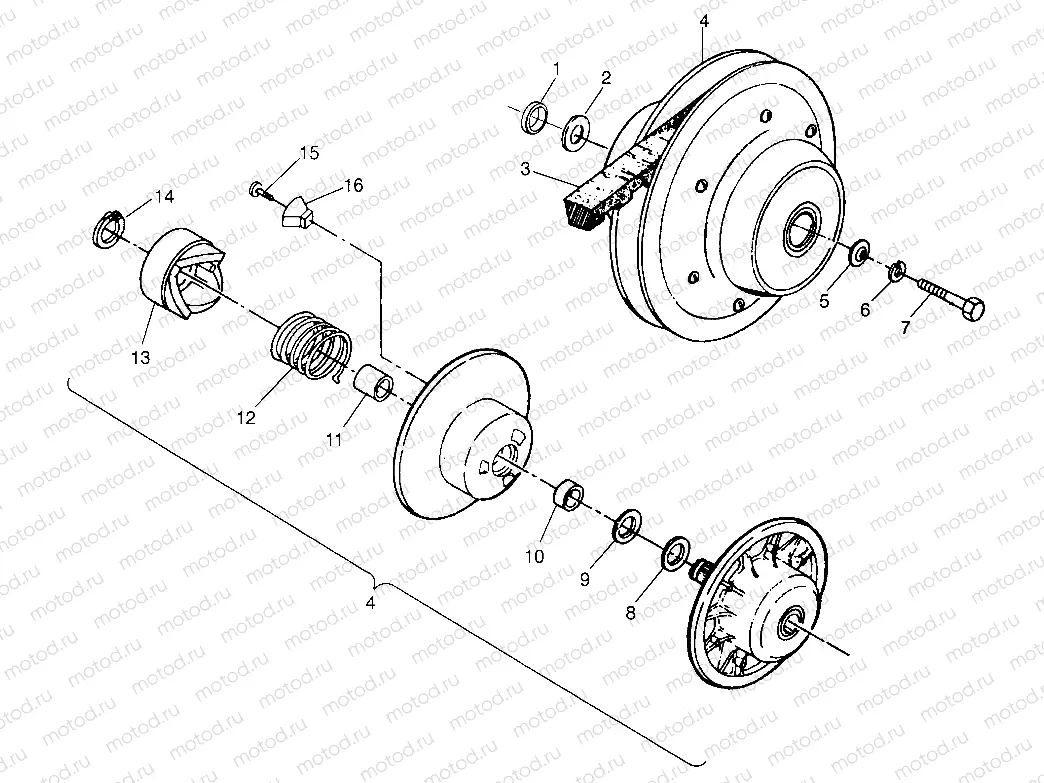

Главная Каталог товаров Polaris EPC 1996 Polaris ATV Polaris 1996 TRAIL BLAZER ES (W967827) Polaris 1996 ATV DRIVEN CLUTCH - W968540 (4935863586C002) | DRIVEN CLUTCH - W968540 (4935863586C002)

DRIVEN CLUTCH - W968540 (4935863586C002) | DRIVEN CLUTCH - W968540 (4935863586C002)

DRIVEN CLUTCH - W968540 (4935863586C002) | DRIVEN CLUTCH - W968540 (4935863586C002)

Например: 7555990

1

7555990

BUSHING (Trail Blazer)

1

5010379

SPACER,DRIVEN CLUTCH

2

7556401

BUSHING

3

3211113

Courroie

4

1322180

ASM. CLUTCH DRIVEN HVY RET

5

5220646

WASHER DOMED

6

7552901

Rondelle (Lock)

7

7515382

Vis

7

7515327

Vis

8

7555898

WASHER-1.5X2.0X.020-Y

9

7556804

WSHR-1.505X2.00X.030-Y

10

3576504

BUSHING MOVEABLE 1/2 INCH

11

3576511

BUSHING MOVEABLE 1 INCH

12

7041198

SPRING CLUTCH (RED)

13

5130738

RAMP, STATIONARY

14

7714401

RETAINING RING

15

7511854

Vis

16

5450873

BUTTON (3)
