Главная Каталог товаров Polaris EPC 2002 Polaris PPS Polaris 2002 ATV PRO 500 4X4 PPS (C02CD50AC) Polaris 2002 PPS DRIVEN CLUTCH - C02CD50AC (4972407240C05) | DRIVEN CLUTCH - C02CD50AC (4972407240C05)

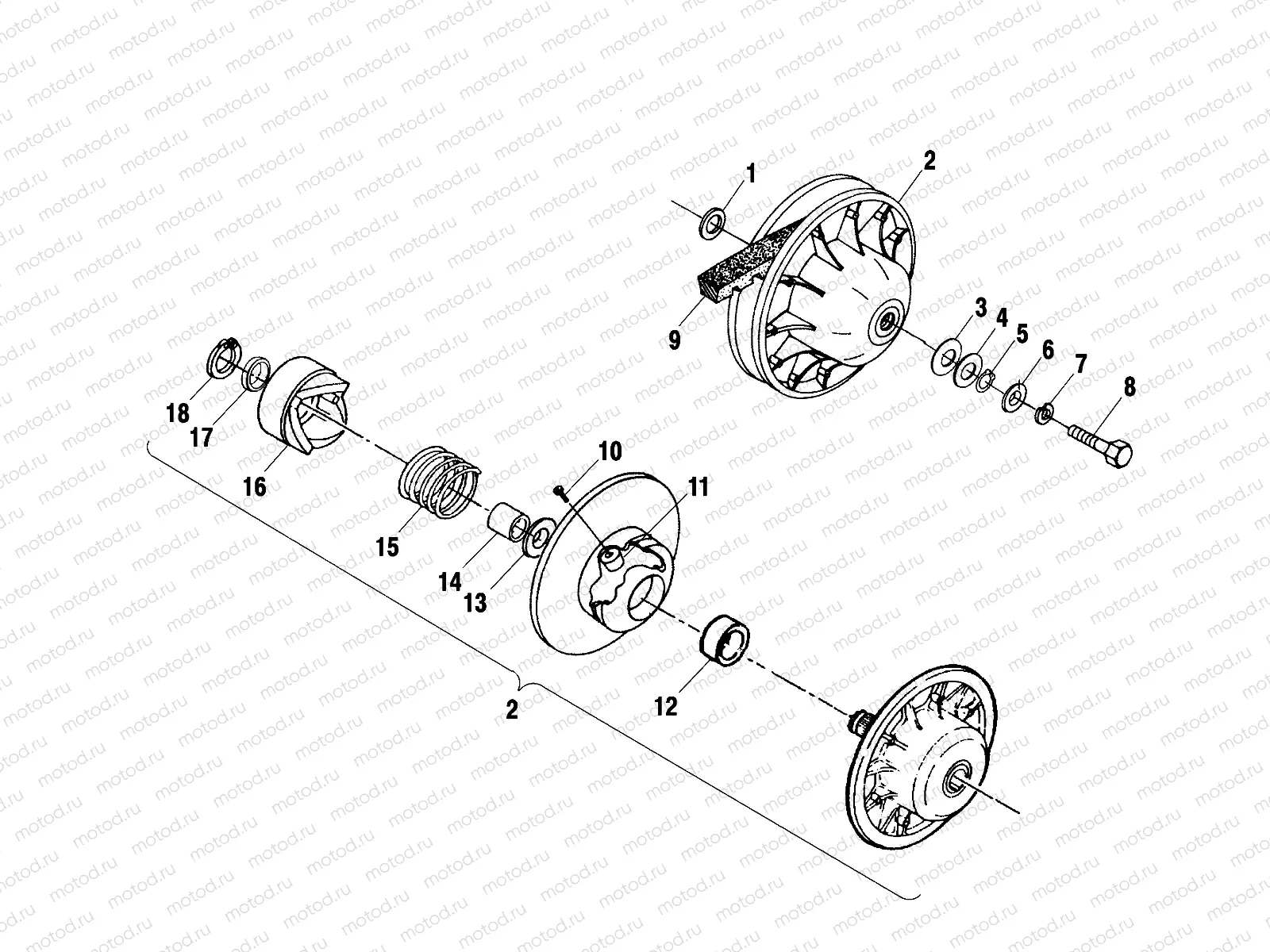

DRIVEN CLUTCH - C02CD50AC (4972407240C05) | DRIVEN CLUTCH - C02CD50AC (4972407240C05)

DRIVEN CLUTCH - C02CD50AC (4972407240C05) | DRIVEN CLUTCH - C02CD50AC (4972407240C05)

Например: 7556120

1

7556120

WASHER-.906 X 1.38 X .060

2

1322310

Asm., Driven Clutch, Braking [Incl. 10-14,17,18]

3

7556203

WASHER-1.39X2.50X.030 PTFE

4

7556010

BUSHING

5

7710461

RING RETAIN.HD.

6

5220646

WASHER DOMED

7

7552901

Rondelle (Lock)

8

7515382

Vis

9

3211069

BELT DRIVE ENG.BRK.

10

7517323

Vis (spec)

11

1321977

ROLLER-TAPER SP-21

12

3585710

Roulement

13

5211115

Rondelle

14

3576511

BUSHING MOVEABLE 1 INCH

15

7041635

SPRING WHT/YELLOW

16

5133631

Ramp, Stationary

17

5210753

SPACER .032

18

7710448

RING RETAINING
