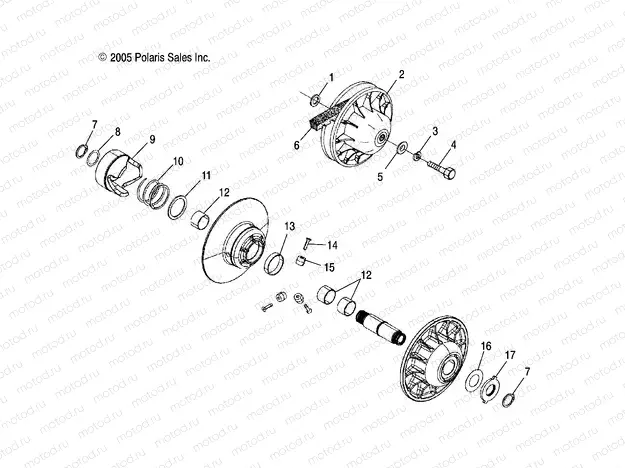

DRIVEN CLUTCH - A05MH50AB/AC/AG/AH/AL/AT/FB (4999200139920013C06) | DRIVEN CLUTCH - A05MH50AB/AC/AG/AH/AL/AT/FB (4999200139920013C06)

DRIVEN CLUTCH - A05MH50AB/AC/AG/AH/AL/AT/FB (4999200139920013C06) | DRIVEN CLUTCH - A05MH50AB/AC/AG/AH/AL/AT/FB (4999200139920013C06)

Например: 7556120

1

7556120

WASHER-.906 X 1.38 X .060

2

1322408

ASM-CLUTCH DRVN EBS W/4

3

7552901

Rondelle (Lock)

4

7515327

Vis

5

5220646

WASHER DOMED

6

3211095

BELT-DRIVE EBS

7

7710448

RING RETAINING

8

5210752

SPACER .020

9

5131674

RAMP STA.BRAKE MACH

10

7041635

SPRING WHT/YELLOW

11

5211115

Rondelle

12

3576511

BUSHING MOVEABLE 1 INCH

13

3585710

Roulement

14

7517323

Vis (spec)

15

1321977

ROLLER-TAPER SP-21

16

7556203

WASHER-1.39X2.50X.030 PTFE

17

5247804

PLATE-CLUTCH DRIVEN EBS STAMP
