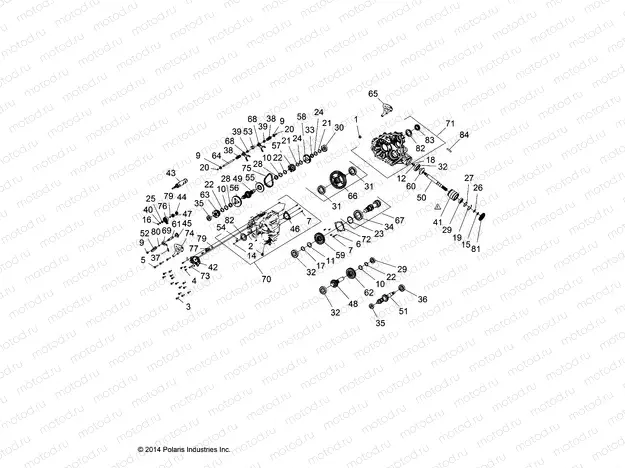

DRIVE TRAIN | DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z15VFE99AT/AV/AP (49RGRGEARCASE1510004)

DRIVE TRAIN | DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z15VFE99AT/AV/AP (49RGRGEARCASE1510004)
Например: 3234302
0
3234302
O-RING -113
0
3234330
Dowel pin
0
1333363
ASM-GEARCASE COMPLETE
1
3234755
PLUG-SKT HD 1SO 6149 M18 X 1.5
2
3234756
PLUG-SOCKET HEAD W/MAG M18X1.5
3
3234898
SCREW-HEXFLANGEHEAD M8X1.25X30
4
3235206
Vis
5
3235207
Vis
6
3235208
SCR-M6X1.0X40 SOC/CAP(105344)
7
3235332
SCR-SCKT HD CP M6X1X18(105355)
8
3235210
NUT-M8X1.25 HXFLG NYLN(110093)
9
3234091
WASHER-CUP
10
3235211
Rondelle
11
3235212
Rondelle
12
3235213
Rondelle
14
7043746
SPRING-SLOTTED PIN 6MM
15
3233106
RING SNAP
16
3233834
RING-RETAINING
17
3233364
RING RETAINING
18
3234318
RING RETAINING EXTERNAL SHR-66
19
3234269
RING RETAININGBASICINTRNL2.047
20
3234090
RING-RETAINING
21
3234205
RING RETAINING
22
3235214
RING RETAINING EXTERNAL
23
3235216
RING RETAINING
24
3233378
WASHER THRUST
25
3234642
WASHER THRUST .446X.88X.025
26
3234272
SHIM 1.180 X .995
27
3234273
SHIM 2.040 OD X 1.630 ID
28
3233014
BEARING NEEDLE
29
3233019
Roulement
30
3233020
Roulement
31
3233268
BEARING BALL
32
3234065
BEARING-BALL
33
3233384
BEARING NEEDLE
34
3235218
BEARING BALL
35
3234652
BEARING BALL
36
3235496
BEARING-6206RSH2(180630)
37
3233820
SPRING-TORSION
38
3234078
SPRING-COMPRESSION
39
3234089
SPRING-COMPRESSION
40
3235327
WASHER-SPRING 210393
41
3234278
TUBE SNORKLE MACH
42
3234188
COVER GEARCASE
43
3235463
DRUM-SHIFT MACH.(255289)
44
3233839
GEAR-SECTOR 16T
45
3233832
GEAR-SECTOR 31T-CUT TO 11T
46
3235456
PARK PLATE (270509)
47
3235603
DETENT STAR
48
3235223
SHAFT IDLER 29T
49
3235380
SHAFT-REVERSE 25T(285878)
50
3235394
SHAFT-FRONT OUTPUT(285914)
51
3235492
INPUT-42T 20T 25T(285990)
52
3235227
BELLCRANK
53
3234073
COLLAR-SHIFT
54
3234230
TUBE-VENT 90-1/4 HOSE
55
3235231
SPROCKET-48T 6-FACE(352854)
56
3235232
GEAR-LOW 67T(352856)
57
3235233
DOG ENGAGEMENT 6-FACE
58
3235234
GEAR 53T
59
3235236
GEAR 46T STAGE 3
60
3235237
GEAR-13T FRONT OUTPUT(352957)
61
3235238
SHAFT SHIFT
62
3235381
GEAR-48T STAGE 3(353115)
63
3235457
SHIFT DOG PARK/LOW (353357)
64
3235542
RAIL-SHIFT SHAFT(353622)
65
3235558
WELD-REAR MNT BRKT(400288)
66
3235335
ASM-SUB OUTPUT GEAR(411753)
67
3235336
ASM-SUB PINION SHAFT(411759)
68
3235454
SHIFT FORK SUBASSEMBLY
69
3235452
ROLLER PAWL
70
3235515
SUBASSY RH CASE (412042)
71
3235514
SUBASSY LH CASE(412043)
72
3235241
COVER BEARING CENTER DRIVE
73
3235350
BRKT-MOUNT(430592)
74
3235559
BRKT-REAR MOUNT(430702)
75
3234737
CHAIN SILENT
76
7661999
PIN-GEAR POSITION SWITCH
77
4013908
SENSOR-SPEED TRANS
79
3233836
O-Ring
80
3233828
O-Ring
81
3235658
SEAL-TRI LIP 25X80X10 HI TEMP
82
3235052
SEAL-TRIPLE LIP VITON 40X70X7
83
3235495
SEAL-TRIP LIP VTN HLX(560385)
84
LR--
CALIPER, BRAKE, RH
