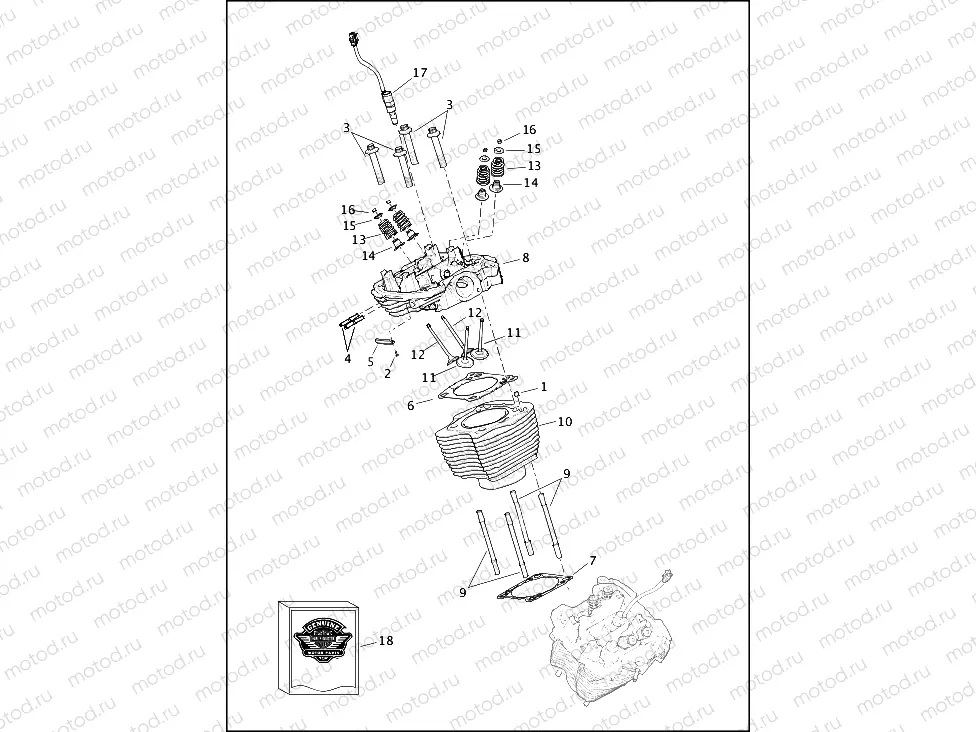

CYLINDERS, HEADS AND VALVES

CYLINDERS, HEADS AND VALVES
1
16589-99A
Dowel pin
2
68120-00
SCREW, SELF-TAP, TAPTITE TORX,
3
10200-303
FLANGE NUT,DULL SILVER
4
10900-015
STUD,EXHAUST
5
14100-779
MEDALLION,CYL,HEAD
6
16500-305
Joint culasse
7
16500-332
GASKET,CYL BASE
8
16500-499
CYL HEAD,ASSY,RR,WATER,BLACK G
8
16500-509
CYL HEAD,ASSY,FR,WATER,BLACK G
9
16800-063
STUD,CYL
10
16800-085
CYLINDER ASM,GRAY,FRONT,4.016
10
16800-090
CYLINDER ASM,GRAY,REAR,4.016
11
18000-016
Valve (IN)
12
18000-034
Valve (EX)
13
18100-043
VALVE SPRING
14
18100-044
SEAL,VALVE
15
18100-045
TOP COLLAR,VALVE SPRING
16
18100-060
KEEPER,VALVE
17
18400-073B
PT CAMDR/VT MISC CMPNT,ACR VAL
18
25700-729
GASKET KIT,TOP END
18
25700-730
GASKET KIT,ENGINE OVERHAUL

Узлы для CVO LIMITED - FLHTKSE Harley-Davidson 2017 CVO/CUSTOM
