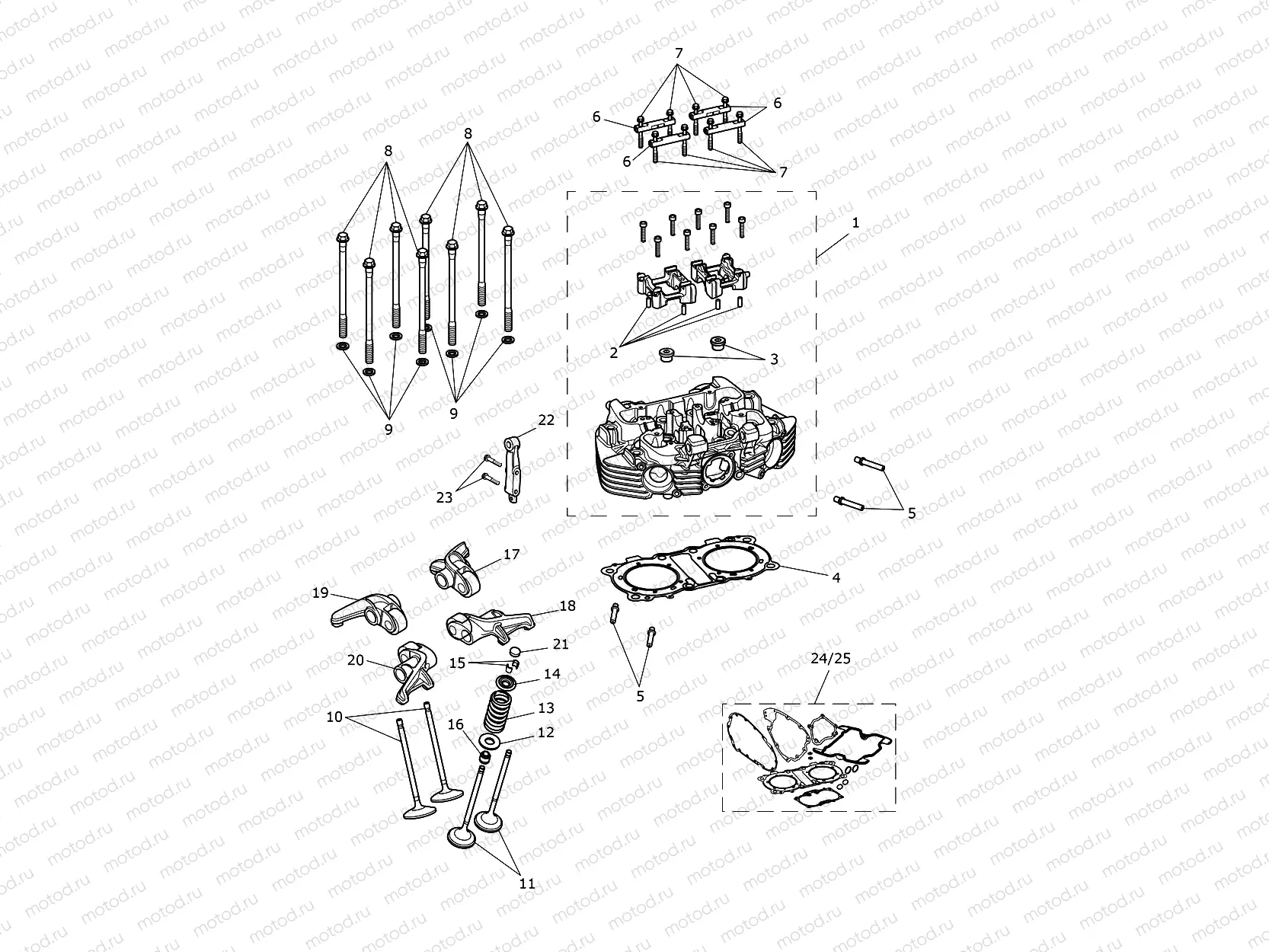

Cylinder Head & Valves

Cylinder Head & Valves

Например: T1156014

1

T1156014

Cylinder Head, 2 Cyl, M/C, 97.

2

T3000005

Dowel, Dia 6.0 x 16

4 шт. в узле

3

T3456666

Plug, Flgd, M18 x 1.5, Slv Enc

2 шт. в узле

4

T1156029

Joint culasse

5

T3100016

Stud, Shouldered, M8 x 55, Slv

4 шт. в узле

6

T1156061

Shaft, Rocker

4 шт. в узле

7

T3205073

Bolt, HHF, Lghtd, M6 x 1.0 x 5

8

T1151111

Bolt, Cylinder Head, M11 x 183

8 шт. в узле

9

T3555038

Washer, Hardened, 11.5 x 19 x

8 шт. в узле

10

T1136004

Inlet Valve

4 шт. в узле

11

T1136005

Valve (EX)

4 шт. в узле

12

T1136010

Platform, Spring, Valve

8 шт. в узле

13

T1136006

Spring Valve

8 шт. в узле

14

T1136001

Retainer, Spring Valve

8 шт. в узле

15

T1130705

Collet

16 шт. в узле

16

T1130710

Joint de tige de soupape

8 шт. в узле

17

T1136030

Rocker Assy, Cyl 1, Inlet

18

T1136031

Rocker Assy, Cyl 1, Exhaust

19

T1136032

Rocker Assy, Cyl 2, Inlet

20

T1136033

Rocker Assy, Cyl 2, Exhaust

21

T1131026

Shim, Dia 9.5, 2.100 mm

21

T1131027

Shim, Dia 9.5, 2.125 mm

21

T1131028

Shim, Dia 9.5, 2.150 mm

21

T1131029

Shim, Dia 9.5, 2.175 mm

21

T1131062

Shim, Dia 9.5, 3.000 mm

21

T1131063

Shim, Dia 9.5, 3.025 mm

21

T1131020

Shim, Dia 9.5, 1.950 mm

21

T1131064

Shim, Dia 9.5, 3.050 mm

21

T1131021

Shim, Dia 9.5, 1.975 mm

21

T1131065

Shim, Dia 9.5, 3.075 mm

21

T1131022

Shim, Dia 9.5, 2.000 mm

21

T1131066

Shim, Dia 9.5, 3.100 mm

21

T1131023

Shim, Dia 9.5, 2.025 mm

21

T1131024

Shim, Dia 9.5, 2.050 mm

21

T1131025

Shim, Dia 9.5, 2.075 mm

21

T1131060

Shim, Dia 9.5, 2.950 mm

21

T1131061

Shim, Dia 9.5, 2.975 mm

21

T1131015

Shim, Dia 9.5, 1.825 mm

21

T1131059

Shim, Dia 9.5, 2.925 mm

21

T1131016

Shim, Dia 9.5, 1.850 mm

21

T1131017

Shim, Dia 9.5, 1.875 mm

21

T1131018

Shim, Dia 9.5, 1.900 mm

21

T1131019

Shim, Dia 9.5, 1.925 mm

21

T1131051

Shim, Dia 9.5, 2.725 mm

21

T1131052

Shim, Dia 9.5, 2.750 mm

21

T1131053

Shim, Dia 9.5, 2.775 mm

21

T1131054

Shim, Dia 9.5, 2.800 mm

21

T1131011

Shim, Dia 9.5, 1.725 mm

21

T1131055

Shim, Dia 9.5, 2.825 mm

21

T1131012

Shim, Dia 9.5, 1.750 mm

21

T1131056

Shim, Dia 9.5, 2.850 mm

21

T1131013

Shim, Dia 9.5, 1.775 mm

21

T1131057

Shim, Dia 9.5, 2.875 mm

21

T1131014

Shim, Dia 9.5, 1.800 mm

21

T1131058

Shim, Dia 9.5, 2.900 mm

21

T1131050

Shim, Dia 9.5, 2.700 mm

21

T1131048

Shim, Dia 9.5, 2.650 mm

21

T1131049

Shim, Dia 9.5, 2.675 mm

21

T1131040

Shim, Dia 9.5, 2.450 mm

21

T1131041

Shim, Dia 9.5, 2.475 mm

21

T1131042

Shim, Dia 9.5, 2.500 mm

21

T1131043

Shim, Dia 9.5, 2.525 mm

21

T1131044

Shim, Dia 9.5, 2.550 mm

21

T1131045

Shim, Dia 9.5, 2.575 mm

21

T1131046

Shim, Dia 9.5, 2.600 mm

21

T1131047

Shim, Dia 9.5, 2.625 mm

21

T1131037

Shim, Dia 9.5, 2.375 mm

21

T1131038

Shim, Dia 9.5, 2.400 mm

21

T1131039

Shim, Dia 9.5, 2.425 mm

21

T1131030

Shim, Dia 9.5, 2.200 mm

21

T1131031

Shim, Dia 9.5, 2.225 mm

21

T1131032

Shim, Dia 9.5, 2.250 mm

21

T1131033

Shim, Dia 9.5, 2.275 mm

21

T1131034

Shim, Dia 9.5, 2.300 mm

21

T1131035

Shim, Dia 9.5, 2.325 mm

21

T1131036

Shim, Dia 9.5, 2.350 mm

22

T3990141

Gasket Kit, Full

23

T3990142

Gasket Kit, Cyl Head

24

T3990141

Gasket Kit, Full

25

T3990142

Gasket Kit, Cyl Head
