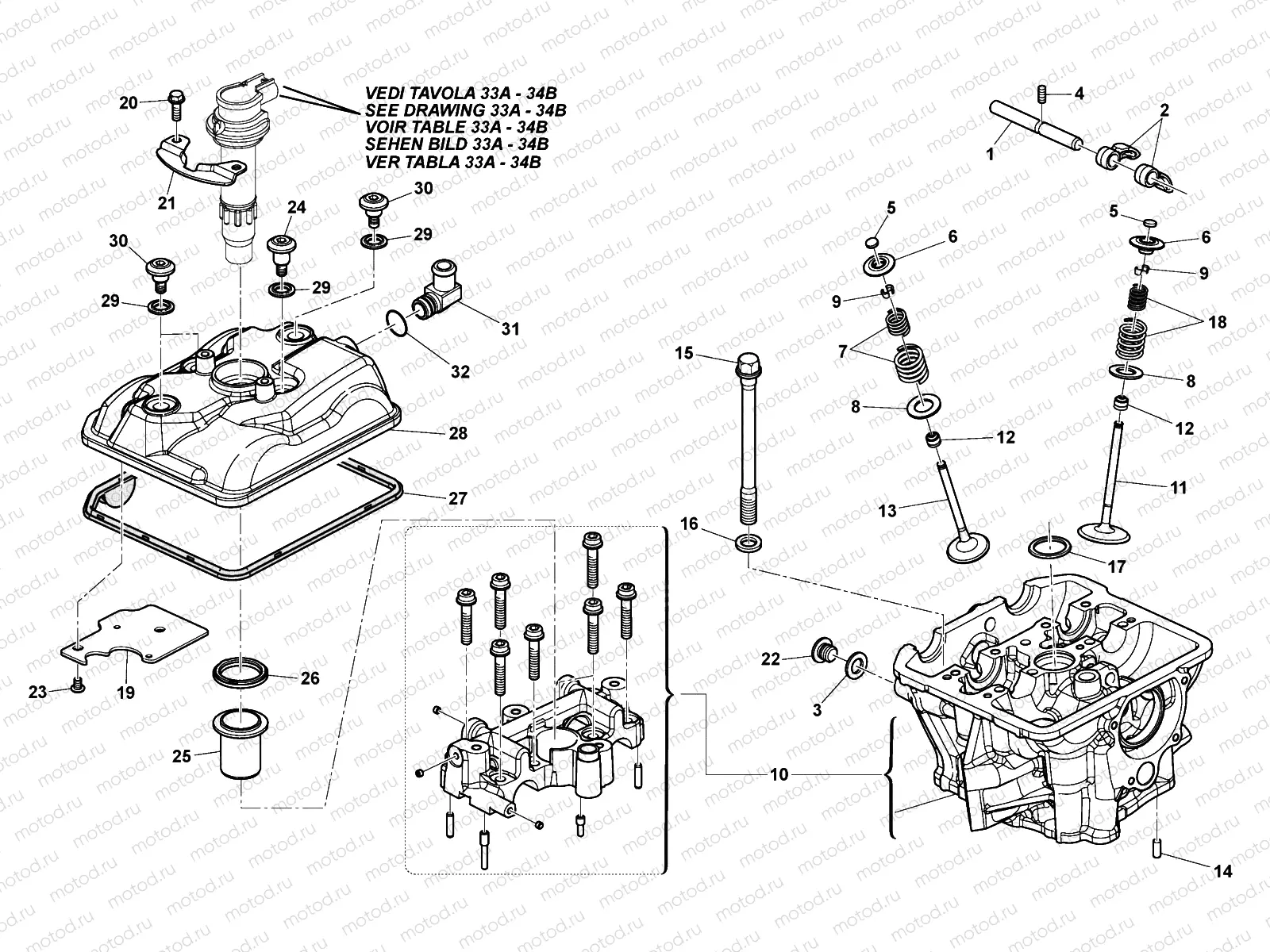

CYLINDER HEAD

1

8000H6098

FINGER FOLLOWER PIN

1

8000H6098

FINGER FOLLOWER PIN

2

8000H6099

FINGER FOLLOWER

2

8000H6099

FINGER FOLLOWER

3

62N015676

Rondelle (17x10.2x1)

3

62N015676

Rondelle (17x10.2x1)

4

8000H6293

FIXING SCREW FOR INTAKE EXHAUS

4

8000H6294

FIXING SCREW FOR INTAKE FINGER

4

8000H6293

FIXING SCREW FOR INTAKE EXHAUS

4

8000H6294

FIXING SCREW FOR INTAKE FINGER

5

8H00A2141

PAD, VALVE ADJUSTING 2.00MM (2,00mm)

5

8E00A2141

PAD, VALVE ADJUSTING 1.85MM (1,85mm)

5

8F00A2141

PAD, VALVE ADJUSTING 1.90MM (1,90mm)

5

8G00A2141

PAD, VALVE ADJUSTING 1.95MM (1,95mm)

5

8J00A2141

PAD, VALVE ADJUSTING 2.05MM (2,05mm)

5

8L00A2141

PAD, VALVE ADJUSTING 2.15MM (2,15mm)

5

8K00A2141

PAD, VALVE ADJUSTING 2.10MM (2,10mm)

5

8A00A2141

PAD, VALVE ADJUSTING 1.65MM (1,65mm)

5

8C00A2141

PAD, VALVE ADJUSTING 1.75MM (1,75mm)

5

8D00A2141

PAD, VALVE ADJUSTING 1.80MM (1,80mm)

5

8R00A2141

PAD, VALVE ADJUSTING 2.35MM (2,35mm)

5

8M00A2141

PAD, VALVE ADJUSTING 2.20MM (2,20mm)

5

8000A2141

PAD, VALVE ADJUSTING 1.60MM (1,60mm)

5

8S00A2141

PAD, VALVE ADJUSTING 2.40MM (2,40mm)

5

8U00A2141

PAD, VALVE ADJUSTING 2.50MM (2,50mm)

5

8W00A2141

PAD, VALVE ADJUSTING 2.60MM (2,60mm)

5

8N00A2141

PAD, VALVE ADJUSTING 2.25MM (2,25mm)

5

8P00A2141

D, VALVE ADJUSTING 2.30MM (2,30mm)

5

8V00A2141

PAD, VALVE ADJUSTING 2.55MM (2,55mm)

5

8B00A2141

PAD, VALVE ADJUSTING 1.70MM (1,70mm)

5

8T00A2141

PAD, VALVE ADJUSTING 2.45MM (2,45mm)

5

8H00A2141

PAD, VALVE ADJUSTING 2.00MM (2,00mm)

5

8E00A2141

PAD, VALVE ADJUSTING 1.85MM (1,85mm)

5

8F00A2141

PAD, VALVE ADJUSTING 1.90MM (1,90mm)

5

8G00A2141

PAD, VALVE ADJUSTING 1.95MM (1,95mm)

5

8J00A2141

PAD, VALVE ADJUSTING 2.05MM (2,05mm)

5

8L00A2141

PAD, VALVE ADJUSTING 2.15MM (2,15mm)

5

8K00A2141

PAD, VALVE ADJUSTING 2.10MM (2,10mm)

5

8A00A2141

PAD, VALVE ADJUSTING 1.65MM (1,65mm)

5

8C00A2141

PAD, VALVE ADJUSTING 1.75MM (1,75mm)

5

8D00A2141

PAD, VALVE ADJUSTING 1.80MM (1,80mm)

5

8R00A2141

PAD, VALVE ADJUSTING 2.35MM (2,35mm)

5

8M00A2141

PAD, VALVE ADJUSTING 2.20MM (2,20mm)

5

8000A2141

PAD, VALVE ADJUSTING 1.60MM (1,60mm)

5

8S00A2141

PAD, VALVE ADJUSTING 2.40MM (2,40mm)

5

8U00A2141

PAD, VALVE ADJUSTING 2.50MM (2,50mm)

5

8W00A2141

PAD, VALVE ADJUSTING 2.60MM (2,60mm)

5

8N00A2141

PAD, VALVE ADJUSTING 2.25MM (2,25mm)

5

8P00A2141

D, VALVE ADJUSTING 2.30MM (2,30mm)

5

8V00A2141

PAD, VALVE ADJUSTING 2.55MM (2,55mm)

5

8B00A2141

PAD, VALVE ADJUSTING 1.70MM (1,70mm)

5

8T00A2141

PAD, VALVE ADJUSTING 2.45MM (2,45mm)

6

8000H5895

VALVE SPRING RETAINER

6

8000H5895

VALVE SPRING RETAINER

7

8539874

EXHAUST VALVE SPRING

7

8539874

EXHAUST VALVE SPRING

8

8000H5894

Rondelle

8

8000H5894

Rondelle

9

8000H5941

VALVE COTTER

9

8000H5941

VALVE COTTER

10

8000H5401

Cylinder head

10

8000H5401

Cylinder head

11

8539056

INTAKE VALVE - DEL WEST

11

8538521

VALVE

11

8539056

INTAKE VALVE - DEL WEST

11

8538521

VALVE

12

8000H5947

VALVE SEALING CORCOS VA3 5-7

12

8000H5947

VALVE SEALING CORCOS VA3 5-7

13

8000H5958

EXHAUST VALVE DEL WEST

13

8538522

VALVE

13

8000H5958

EXHAUST VALVE DEL WEST

13

8538522

VALVE

14

8000A6939

Dowel pin

14

8000A6939

Dowel pin

15

8000A6564

BOLT CYLINDER HOLDING

15

8B00A6564

Stud bolt

15

8000A6564

BOLT CYLINDER HOLDING

15

8B00A6564

Stud bolt

16

Z00023374

Rondelle

16

Z00023374

Rondelle

17

8A0042700

O-RING 23.52X1.78

17

8A0042700

O-RING 23.52X1.78

18

8539829

INTAKE VALVE SPRING (IN)

18

8539829

INTAKE VALVE SPRING (IN)

19

8000H6133

BLOW BY PLATE

19

8000H6133

BLOW BY PLATE

20

0025060206

Vis

20

0025060206

Vis

21

8000H7283

STICK COIL SAFETY PLATE

21

8000H7283

STICK COIL SAFETY PLATE

22

8000H6571

PLUG M10 X 1

22

8000H6571

PLUG M10 X 1

23

ZC0065535

Vis

23

ZC0065535

Vis

24

8000H6582

BOLT FOR CYLINDER HEAD COVER

24

8000H6582

BOLT FOR CYLINDER HEAD COVER

25

8000H5410

Bougie d'allumage

25

8000H5410

Bougie d'allumage

26

8000H6078

Gasket - spark plug

26

8000H6078

Gasket - spark plug

27

8000H6077

Joint de couvercle de soupape

27

8000H6077

Joint de couvercle de soupape

28

80A0H6337

CYLINDER HEAD COVER

28

80A0H6337

CYLINDER HEAD COVER

29

800091588

SEAL WASHER GM2000 M10,7X8,1X1

29

800091588

SEAL WASHER GM2000 M10,7X8,1X1

30

8000H6581

BOLT FOR CYLINDER HEAD COVER

30

8000H6581

BOLT FOR CYLINDER HEAD COVER

31

8000A7039

PIPE BLOW-BY

31

8000A7039

PIPE BLOW-BY

32

800001199

O-Ring

32

800001199

O-Ring

CYLINDER HEAD
